1 5
K-Tuned

Jedset Performance

4 BAR MAP Sensor - K-Series

4 BAR MAP Sensor - K-Series

KTD-MAP-KM4

$144.49 CAD
$156.36 CAD $144.49 CAD
Sale Sold out

**Found a better price? Contact us for price matching!**

**Please contact us to check stock availability before placing your order**

⚠️ Please Note: Overweight and oversized products are subject to additional shipping charges. Oversized Items Any item that meets one or more of the following conditions is considered an Oversized Item: Exceeds 25 inches in length, width, or height. Weighs more than 30 lbs. Contact us for more information before placing the order.

KTD-MAP-KM4

Applications:

  • All K-Series engines
  • Fits K-Tuned Throttle Bodies
Notes:
* Excludes K24Z-Series Engines
* Requires engine management to use (Flashpro/K-Pro/S300/AEM)
* We offer a 1 Year Warranty with all MAP sensors
* We offer a 1 year warranty with all MAP Sensors.

Specification:
K-Tuned 4 BAR MAP Sensors are designed to accurately read the increased manifold pressures on turbo or supercharger setups and will reliably support up to 58 psi of boost pressure. The sensors feature direct plug and play fitment for several Honda / Acura applications and are easy to install. The sensor provides the fastest response time available of 0.001 seconds and an accuracy over 99%.

BAR is a unit of measure, 1 BAR = 14.5psi. When calibrating in your  ECU 4 Bar will be a standard that can be easily selected or calibrated. You will simply select the appropriate sensor from the MAP tab of your preferred tuning software and your all set. Select your application carefully as there a 3 different style sensors currently available.

MIN Voltage .08

MAX Voltage 4.88

Scalar 838

Load Offset 31

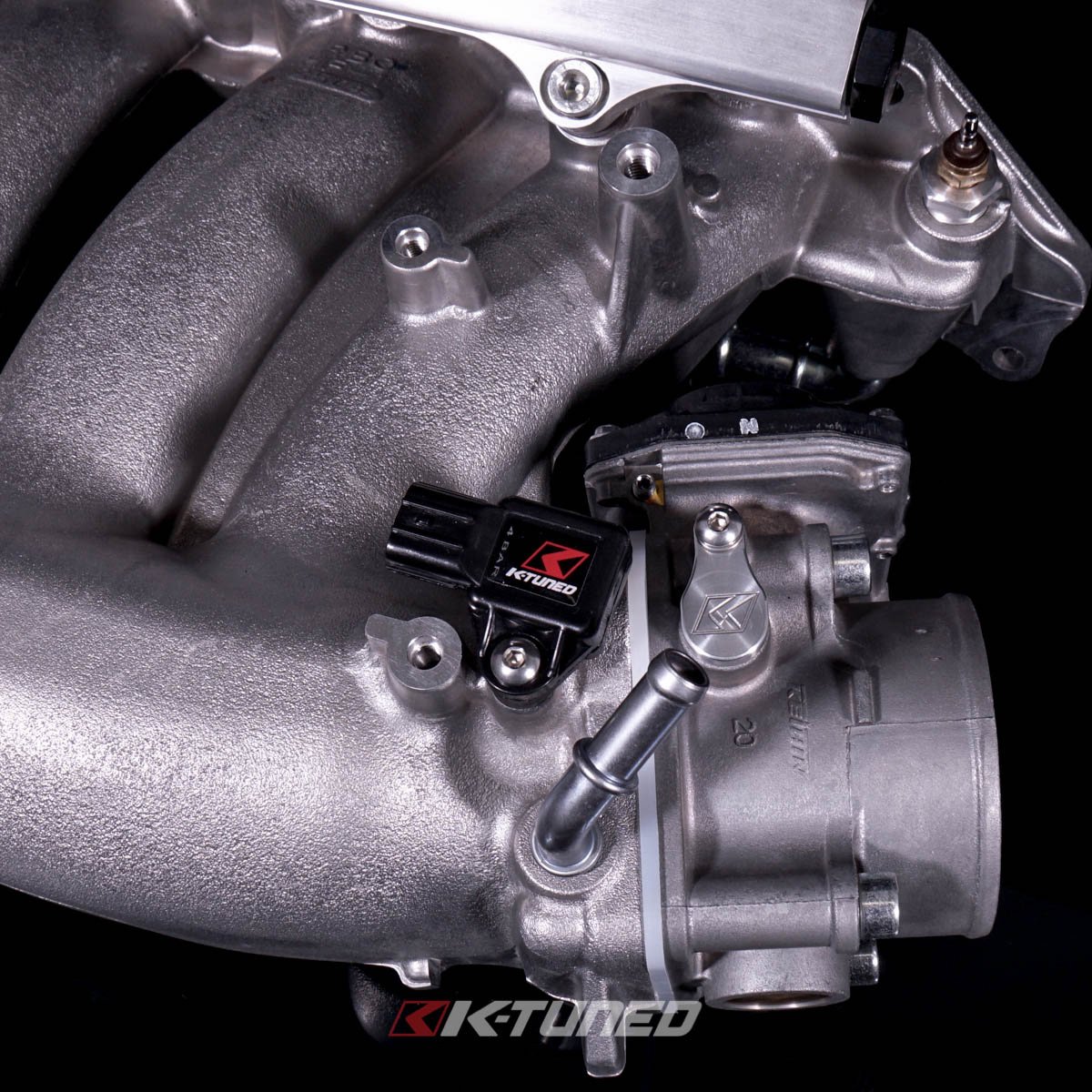

* photo may vary from actual product *
