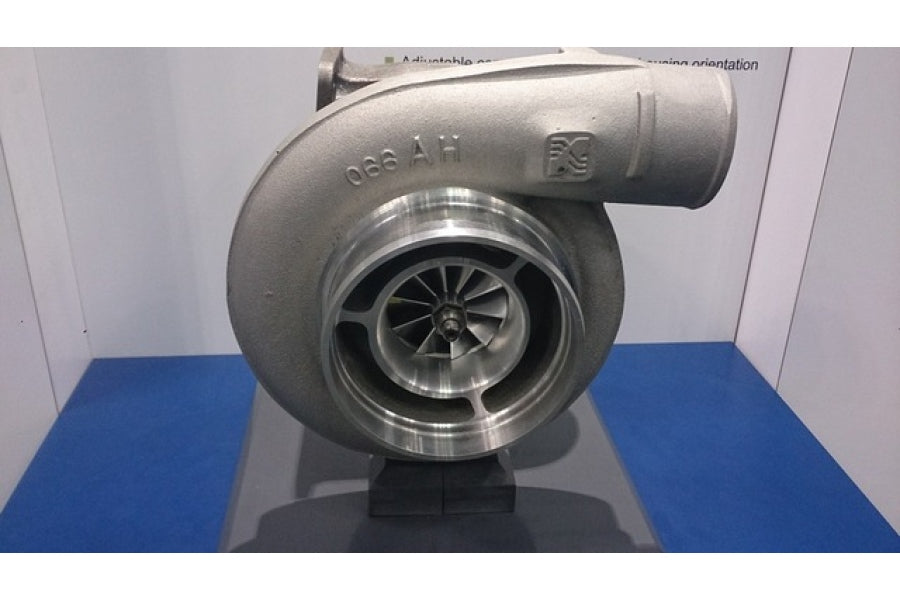

Borg Warner 72mm (96/87) Turbo, S400SX-E

Part # 14879880082

Make Big Power With the BorgWarner AirWerks SX-E Turbo S472SX-E – 72mm Enhanced S400 SXE 9687
BorgWarner 72.0mm SX-E is designed for drag racing in competitive 72mm limited inducer applications. Utilizing a state-of-the-art 10 full-blade “C10” compressor design, this turbo is capable of flowing massive airflow rates in excess of 110 lbs/min. Higher airflow rates make this an excellent match for high-boost and high-power applications. This turbo is oil-cooled journal bearing only.

The S472SX-E is capable of getting you between 500 and 1100hp, which is plenty for most drivers. It also does this at a price point that's far below some of the competition, making this SX-E turbo one of the more economical ways to make big power—a hallmark of all BorgWarner AirWerks turbochargers.

BorgWarner SX-E Turbo Features:
Forged milled compressor wheels with Optimized compressor blade aerodynamics
all-new severe-duty 360-degree thrust bearing
Compressor cover integrated speed sensor port and pre-machined boost port
Flexible compressor cover outlet options: coupler or v-band
Interchangeable with existing Airwerks turbine housings for plug-and-play upgrades
Optional Turbo Speed Sensor Kit
Optional Turbo Speed Gauge
Compressor Specifications
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (exducer): 96mm
Compressor Wheel Inducer: 72mm
Max Flow Rate: 110 lb/min
Compressor Housing Connections:
Inlet: 5.5″ Hose Coupler
Outlet: 3″ Hose Coupler
Turbine Specifications
Turbine Type: Inconel S400SX Turbine Wheel
Turbine Wheel OD: 87.37mm
Housing Material: D5S sandcast
Housing Size and A/R ratio: S400SX-E 9687 (S472SX-E) is available in four (4) different turbine housing configurations:
0.90 A/R T4 Single Scroll
1.00 A/R T4 Twin Scroll
1.10 A/R T4 Twin Scroll
1.25 A/R T4 Twin Scroll (Recommended for 30+psi Boost Levels)
