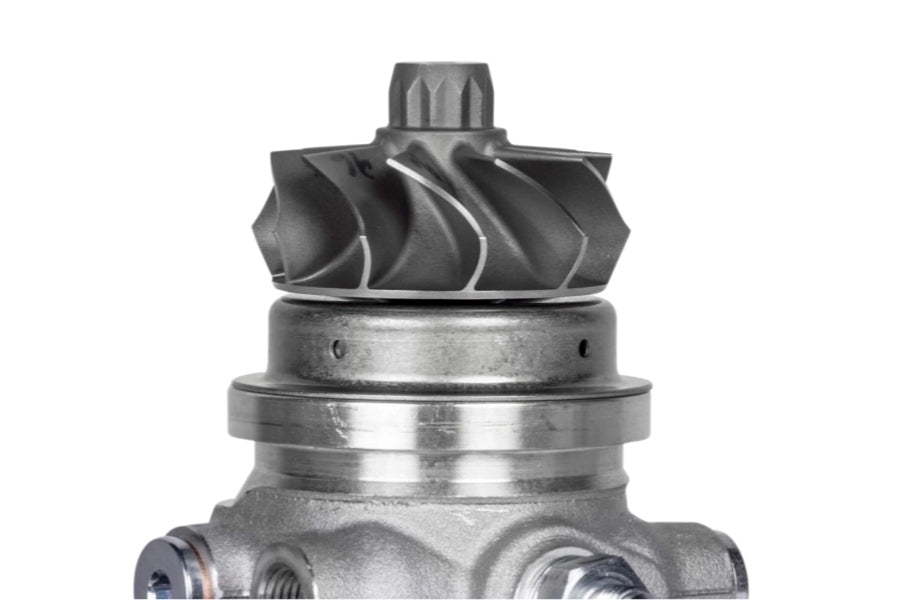

Borg Warner B1 7163G 0.80 a/r VTF WG EFR Turbocharger

The EFR 7163 is the highest power small-frame BorgWarner EFR turbocharger.  Flowing 60lb/min from a compact package, the 7163 is designed specifically for competitive racing use.  Used in twin-turbo configuration by all current Indycar Racing teams, BorgWarner's state-of-the-art ‘Mixed-Flow Gamma-Ti Turbine Wheel’ design allows for a remarkably fast spool and huge powerbands.  This turbo is wildy popular for a range of applications from Honda K series, Subaru EJ25 and it's a direct plug-n-play for Nissan SR20DET and other T25 based setups.  As a twin turbo it works great for 350Z/370Z, Nissan RB30, Ford EcoBoost 3.5L and Porsche.

• Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
• Compressor Wheel OD (exducer): 71mm
• Compressor Wheel Inducer: 57mm
• Compressor Wheel Trim: 64
• Max Flow Rate: 60 lb/min
• Compressor Housing: 2.5″ hose coupler inlet, 2.0″ hose coupler outlet
• Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
• Connections:Inlet: 2.5″ Hose Coupler
• Outlet: 2.0″ Hose Coupler

• Turbine type: Low Inertia Gamma-Ti Turbine Wheel
• Turbine Wheel OD: 63mm
• Stainless Steel Investment cast Housing
  The EFR 7163 is available in (3) different turbine housing configurations:
  • 0.85 A/R T25 undivided (Internal WG)
  • 0.85 A/R V-Band In/Out (Internal WG)
  • 0.80 A/R T4 twinscroll (External WG)
• Turbine outlet: GT-Vband (aka small 3" vband) ~92mm OD for all EFR turbos

• Max turbo speed: 150krpm
• Mixed Flow Gamma-Ti turbine wheel
• Forged milled extended tip compressor wheel
• Military-grade dual ceramic ball bearing assembly with silver-plated metal cage
• Lowest friction and fastest spool/response, most extreme durability, built-in 2mm oil restrictor
• Stainless steel turbine housing
• Watercooled light-weight Aluminum bearing housingwatercooling is recommended, 14mmbanjo bolts
• Double seals on both turbine and compressor end for extreme durability and resistance to any oil seepage
• Large internal wastegate (optional)
• Compressor recirculation valve (aka BOV)
• Boost control solenoid valve integrated into the compressor housing
• T25, T4, and V-Band Turbine Housing options to fit a variety of installations
• Optional Turbo Speed Sensor Kit
• Optional Turbo Speed Gauge
