Fire Sleeve & Tape Kit - 3/8 I.D. x 36 DISCONTINUED

Fire Sleeve & Tape Kit - 3/8 I.D. x 36 DISCONTINUED

10470 dei

$33.98 CAD
$35.67 CAD $33.98 CAD
Sale Sold out

**SEND US AN EMAIL FOR PRICE MATCHING**

**PLEASE CONTACT US BEFORE ORDERING THE PARTS FOR AVAILABILITY**

Part # 10470

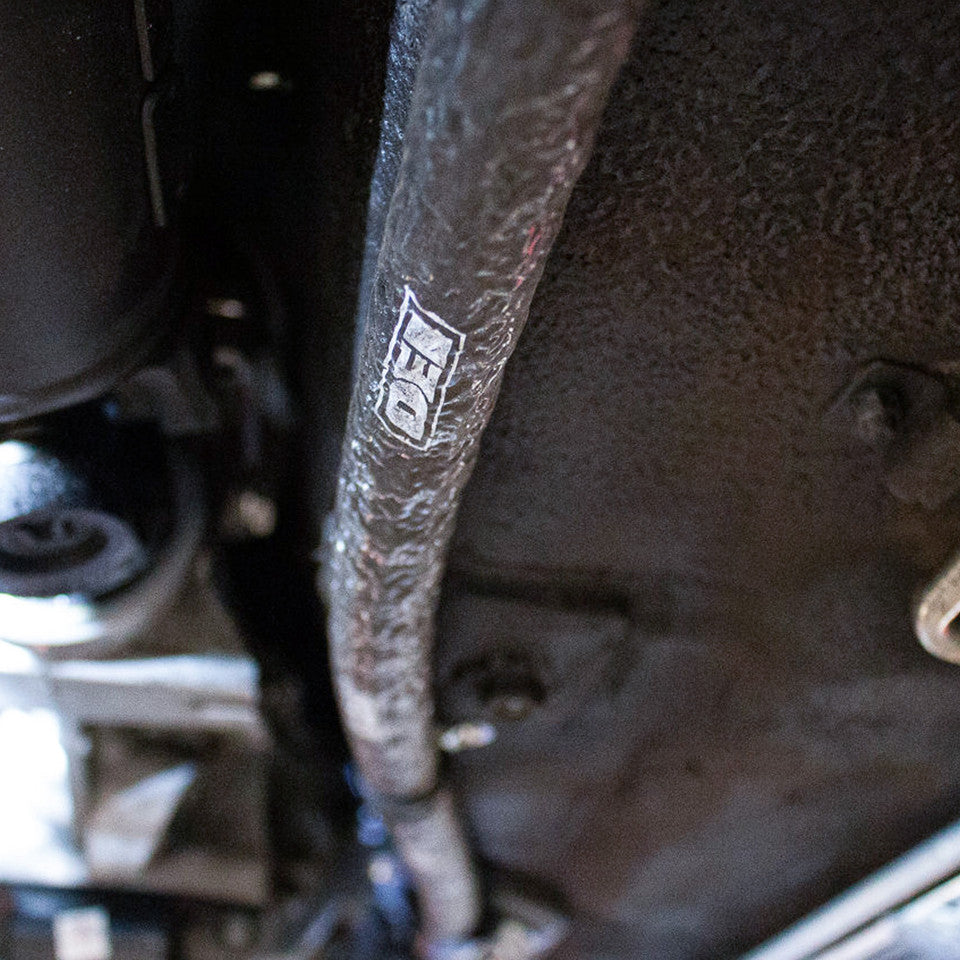

Fire Sleeve solves the problem of heat and abrasions damaging fuel, transmission and brake lines and is a fireproof solution.

Constructed from a high temperature resistant braided glass material, woven into a sleeve and heavily coated with 100% iron oxide silicone rubber, Fire Sleeve thermal insulator sleeve provides the ultimate in heat insulation and protection from direct heat up to 500°F.

Includes a 16-inch length of black Fire Tape, an adhesive-free, self-adhering tape, to finish off ends of Fire Sleeve or when joining two Fire Sleeves together while presenting a clean and professional look.

  • Insulates wiring, hoses, oil / brakes / transmission lines & more
  • Use for bundling & protecting hoses, electrical wiring, etc.
  • Withstands 2000°F of intermittent heat
  • Includes 16 inches of black Fire Tape
  • Size: 0.375 (3/8) inch x 36 inches

Fitment Chart

AN Conversion Chart
AN Size

Metal Tube O.D.

Thread Size
2

0.125" (1/8")

5/16 24 SAE
3

0.1875 (3/16")

3/8 24 SAE
4

0.25 (1/4")

7/16 20 SAE
5

0.3125 (5/16")

3/8 18 SAE
6

0.375 (3/8")

9/16 18 SAE
8

0.5 (1/2")

3/4 16 SAE
10

0.625 (5/8")

7/8 14 SAE
12

0.75 (3/4")

1-1/16 12 SAE
16

1"

1-5/16 12 SAE
20

1.25 (1-1/4")

1-5/8 12 SAE
24

1.5 (1-1/2")

1-7/8 12 SAE
28

1.75 (1-3/4")

2-1/4 12 SAE
32

2"

2-1/2 12 SAE

Fire Sleeve Application Chart
Part#

Name

Line Size*
10470

3/8" Fire Sleeve

3AN
4AN
6AN**
10472

5/8" Fire Sleeve

6AN
8AN
10474

1" Fire Sleeve

10AN
12AN
16AN**
5/8" Heater Hose
3/4" Heater Hose

*Braided Kevlar line was used in testing. You may notice a slight difference in size if you have Braided Stainless Steel lines.

**Tight fit: If you have fittings on your line, you may need to order one size up. You can achieve between 1/16" and 1/8" stretch out of our material. This may help on installs with fittings already on the lines.

ID:



10 mm

* photo may vary from actual product *
