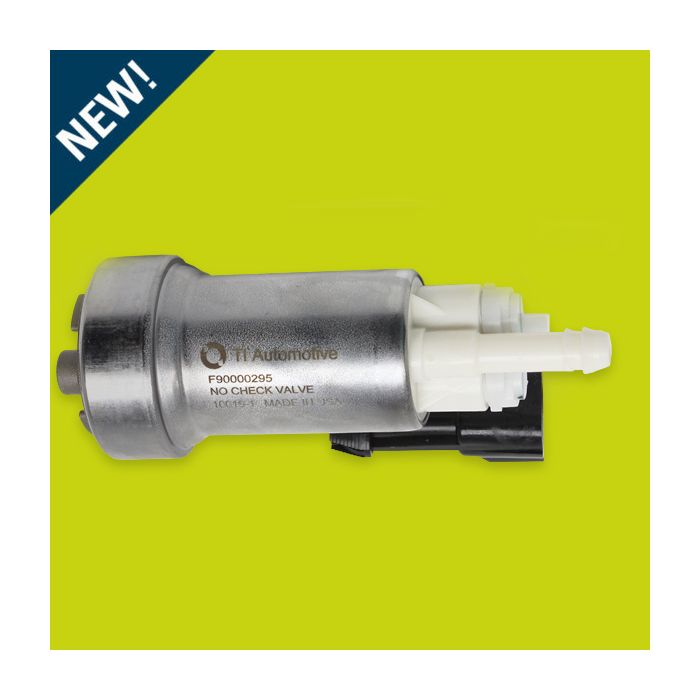

FUEL PUMP 535LPH, All Gasoline and E85 40 PSI NO CHECK VALVE

Part # F90000295

- Highest flow in-tank brushed fuel pump offering from TI Automotive / Walbro
- No Internal check valve - ideal for racing applications to build oil pressure prior to start-up
- Featuring award winning DCSS technology
- E85 compatible
- High-pressure relief setting - supports supercharger and turbo applications
- Capable of supporting 900+HP at 60PSI naturally aspirated applications
- Complete Pump and kit combination – TCD495

Fuel: GAS & E85
Horsepower: 900+ at 60PSI, naturally aspirated applications
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD
Flow Rate: 535LPH at 40psi
Test Voltage: 13.5 Volts

Note: Pump does NOT have a check valve

NOTE: All Power estimates are for 3 Bar of Fuel Pressure, and are HP and KW at the engine.
