HKS Hi-Power 409 AP1 F20C
HKS Hi-Power 409 AP1 F20C
SKU:32003-AH007
Couldn't load pickup availability
**SEND US AN EMAIL FOR PRICE MATCHING**
**PLEASE CONTACT US BEFORE ORDERING THE PARTS FOR AVAILABILITY**
Part # 32003-AH007
Specifications
Compatible for AP1 and AP2 models
| Cert. No. | 03S07566 |
| Vehicle | S2000 |
| Model | AP1 |
| Engine | F20C |
| Model Year | 99/04 - 05/10 |
| Shape of muffler | HP (Hi-Power409) | |
| Main material | S409(*2) | |
| Diameter of tip | 94 L&R | |
| Diameter of center pipe | 60-50 x 2(*3) | |
| Close noise level | Stock | 95 |
| HKS | 95 | |
| About road clearance(*4) | Clearance | 135mm |
| Portion of the kit | Y junction portion | |
| Remarks | ||
| Product Weight | ||
Remarks
About HKS muffler
*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

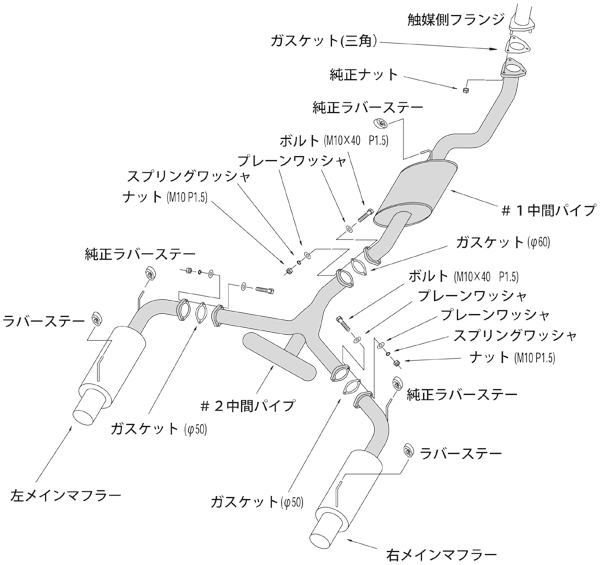

*2: Main material in the component figure.
： SUS304/High quality stainless steel.
： SUH409/Stainless steel commonly used for stock exhaust.
*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
* photo may vary from actual product *
