HKS Hi-Power Single Racing Version FR-S

HKS Hi-Power Single Racing Version FR-S

32016-BT002

$1,373.15 CAD
$1,441.81 CAD $1,373.15 CAD
Sale Sold out

**SEND US AN EMAIL FOR PRICE MATCHING**

**PLEASE CONTACT US BEFORE ORDERING THE PARTS FOR AVAILABILITY**

Part # 32016-BT002

Specifications

Product Code
32016-BT002
WEIGHT(kg)
15.05
NO. OF BOX
1
LENGTH (mm)
1205
WIDTH (mm)
515
HEIGHT (mm)
515
Make
SCION
Model
FR-S
Model Year
2013-2016
Engine
FA20
Chassis code
ZN6
Drive Train
RWD
Remarks

Titanium tail can slide (20mm) /Compatible with inner silencer 3306-RA072 Note; Closed sound level under US measurement method is 95dB, Style: HP(Titan), Material: S4, Tip O.D.: 97, 55: 75, Consist of: 3, Close Sound Level Stock: -, Close Sound Level HKS: 104, Idling Sound Level Stock: -, Idling Sound Level HKS: 77

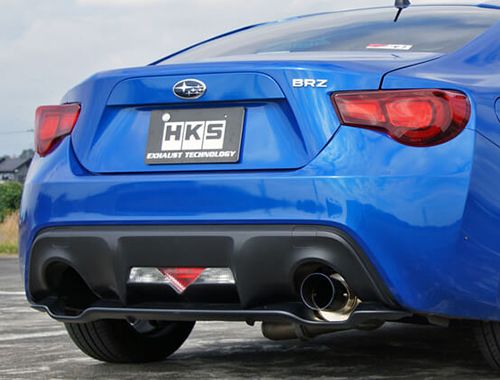

32016-BT002 Product Image
32016-BT002 Product Image
32016-BT002 Product Image

HKS

Cert. No.
Vehicle BRZ
Model ZC6
Engine FA20
Model Year 12/03 -
Shape of muffler HP(Titan)
(Hi-Power Muffler)
Main material S409(*2)
Diameter of tip 97
Diameter of center pipe 75(*3)
Close noise level Stock -
HKS 104
About road clearance(*4) Clearance 124mm
Portion of the kit 2nd center pipe
Remarks
Product Weight







Remarks

・Titanium tail can slide (20mm)・Compatible with inner silencer 3306-RA072Note; Closed sound level under US measurement method is 95dB.



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

*2: Main material in the component figure.

： SUS304/High quality stainless steel.
： SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

* photo may vary from actual product *
