HKS LEGAMAX Premium ROADSTER ND5RC
HKS LEGAMAX Premium ROADSTER ND5RC
SKU:32018-AZ010
Couldn't load pickup availability
**SEND US AN EMAIL FOR PRICE MATCHING**
**PLEASE CONTACT US BEFORE ORDERING THE PARTS FOR AVAILABILITY**
Part # 32018-AZ010
Specifications
Compatible with 6MT and 6AT
| Cert. No. | JQR10151206 |
| Make | MAZDA |
| Model | MX-5 |
| Engine | PE-VPS |
| Model Year | 2016 - 2022 |
| Shape of muffler |
KC-1 (LEGAMAX Premium) |
|
| Main material | S304 | |
| Diameter of tip | 75 x 2 | |
| Diameter of center pipe | 54-50(*1) | |
| Close noise level | Stock | 86 |
| HKS | 92 | |
| About road clearance(*4) | Clearance | 184mm |

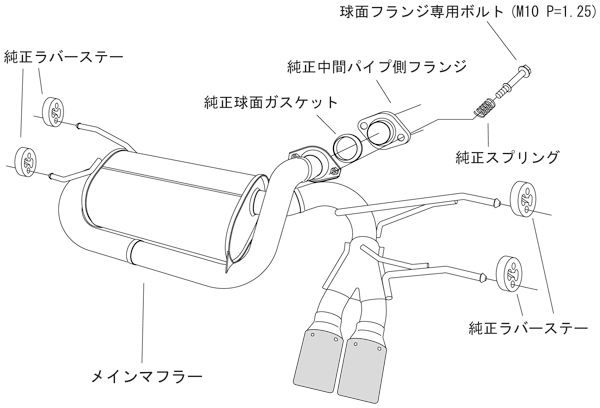

| Portion of the kit | Main Muffler Flange | |
| Remarks | Ground clearance is 140mm at the 2nd CAT insulator. | |
| Product Weight | 9.26kg | |
Remarks
Not compatible with vehicle with MAZDA SPEED rear underskirt. (Insufficient clearance)
DBA-ND5RC 6MT vehicle(P5-VPR) with i-ELOOP+i-stop (Idling stop) made before June 2018 doesn't comply with Japanese regulations.
5BA-ND5RC AT vehicle made after July 2018 doesn't comply with Japanese regulations.
About HKS muffler
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.

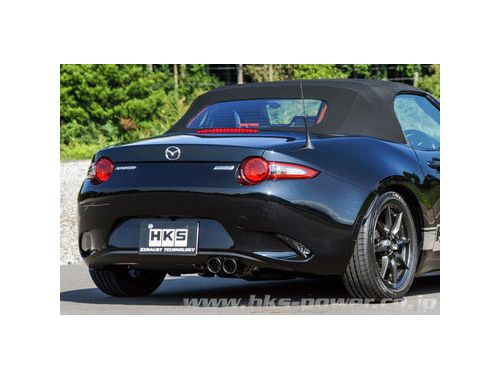

* photo may vary from actual product *
