HKS SUS CENTER PIPE GE6/GE8 L13A/L15A
HKS SUS CENTER PIPE GE6/GE8 L13A/L15A
SKU:33004-AH002
Couldn't load pickup availability
**SEND US AN EMAIL FOR PRICE MATCHING**
**PLEASE CONTACT US BEFORE ORDERING THE PARTS FOR AVAILABILITY**
Specifications
Type: STAINLESS EXHAUST MANIFOLD, Pipe Size: D45 - 50 - 65, Consist of: 1,
| JASMA # | 06C00474 |
| Main material | SUS304 (* 2) | |
| Diameter of Center Pipe | D45 | |
| Partition number | 1 | |
| Close noise level | Stock | 76dB (★51dB) |
| HKS C/P + stock main | 77dB (★55dB) | |
| HKS C/P + HKS SH/M | 90dB (★62dB) | |
| Height of the installed vehicle (*4) |
Height | 140mm |
| Kit part | Center Pipe | |
| Remarks | ||
Remarks
Close noise level of stock muffler installed:77dB silent Hi-Power installed:90dB
* 2:about main materials for configuration diagram
: SUS304/high quality stainless steel
: SUH409/stainless steel material that are used a lot for stock
* 4: The values are the shortest length of HKS muffler (all the parts for Kit) and street surface to clearance for HKS muffler installed. Therefore the shortest height length value might be different from length of the vehicle itself. Please note that the data is normally the data of stock suspension, but some data is from the low down spring and vehicle height kit together.
* Hook, bracket and stay might change without prior notice.
★:For idling exhaust sound
| Make | Model | Engine | Model Year | Pipe Size | Consist of | Code No. |
|---|---|---|---|---|---|---|
| HONDA | FIT | L15A | 2009 - 2014 | D45 | 1 | 33004-AH002 |

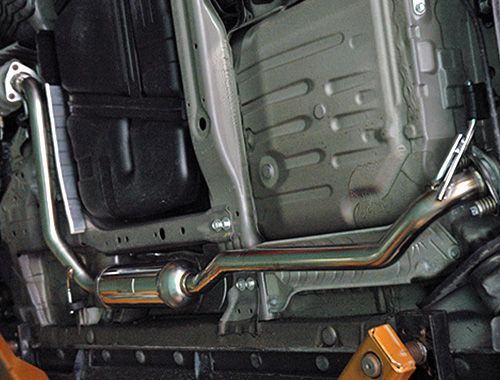

* photo may vary from actual product *
