King Engine Bearings

Jedset Performance

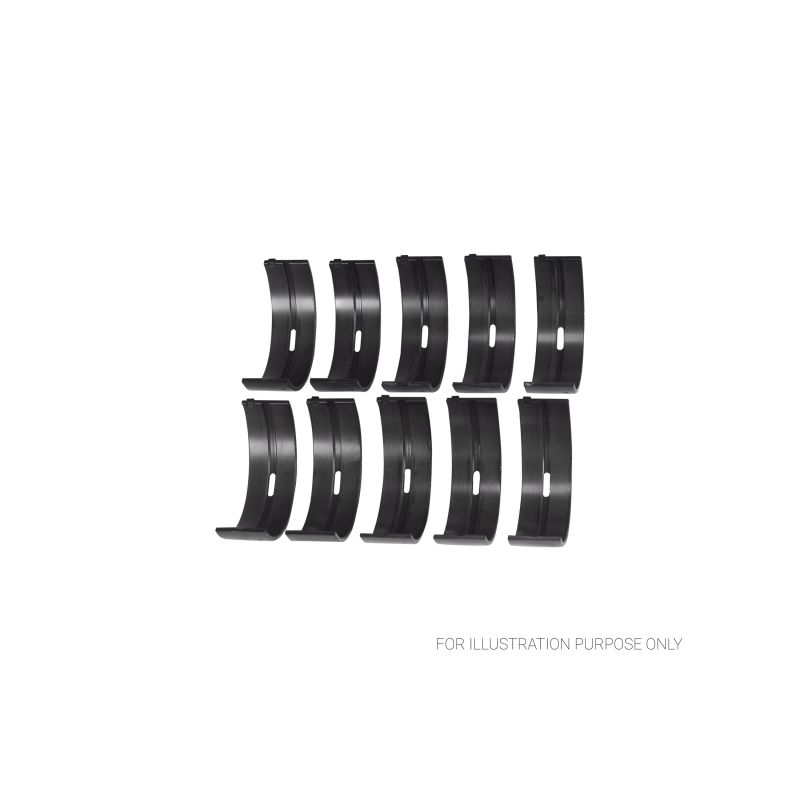

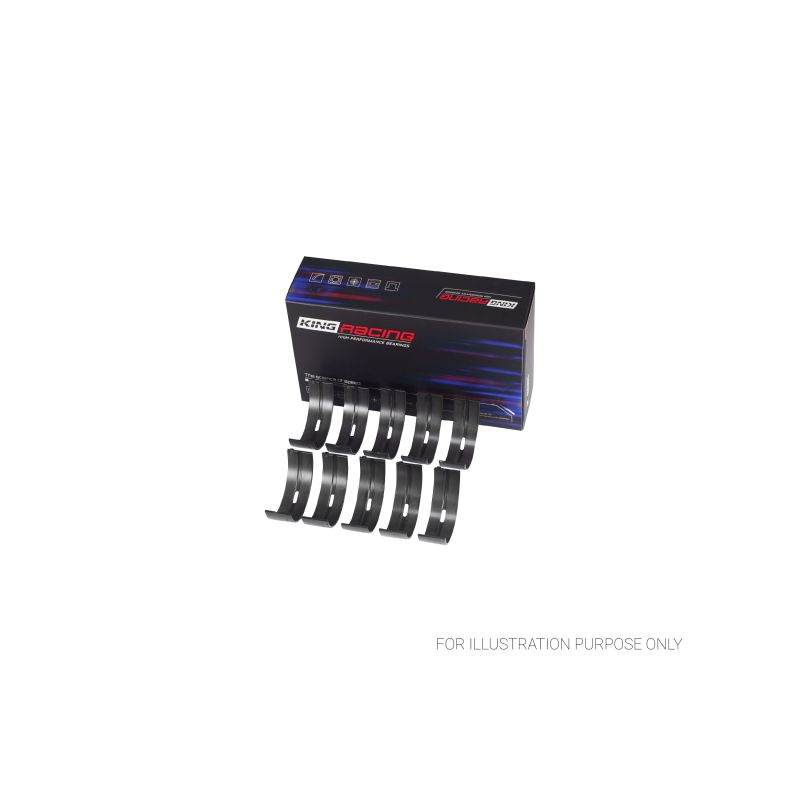

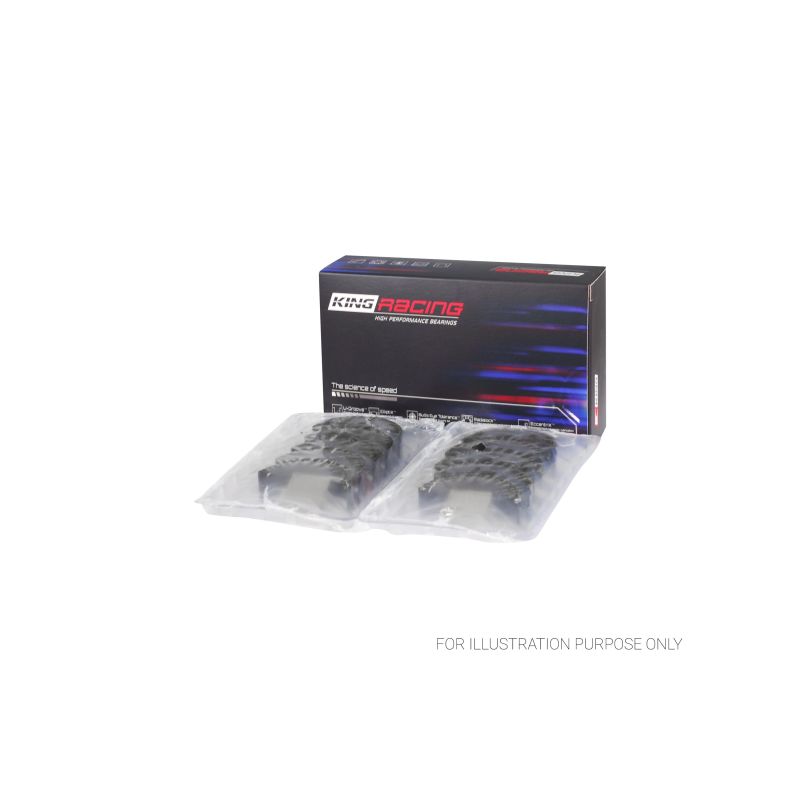

MAIN BEARING SET FOR HONDA D-SERIES, F23A, F23Z

MAIN BEARING SET FOR HONDA D-SERIES, F23A, F23Z

MB5568XP

$183.92 CAD
$193.11 CAD $183.92 CAD
Sale Sold out

**SEND US AN EMAIL FOR PRICE MATCHING**

**PLEASE CONTACT US BEFORE ORDERING THE PARTS FOR AVAILABILITY**

Part # MB5568XP

King Bearings popular XP Series features the pMaxBlack™ overlay - producing superior load capacity. XP is a tri-metal Lead Bronze layered material, with a nano-scaled hardening process of Babbitt overlay that withstands 10,200 PSI load. Ideal for Circle Track, Drag Racing, off-shore, and other applications that utilize steel crankshafts.



Commonly use for most of the race applications including circle track, drag racing, off-shore, and other applications that utilize steel crankshafts
Crankshaft Dim. Housing Dim. Length Thickness
55.00 / 54.98 mm
2.1654 / 2.1646 inch		 59.02 / 59.00 mm
2.3236 / 2.3228 inch		 20.0 mm
0.787 inch		 2.000 mm
0.0787 inch

Main Bearing Set For HONDA D-SERIES, F23A, F23Z, 16V - MB5568XP
Make Model Year Engine
Acura CL 2.3L L4 1998 - 2000
Acura EL 1.6L L4 1996 - 2000
Acura EL 1.7L L4 2000 - 2005
Acura ILX 2.4L L4 2012 - 2015
Acura INTEGRA 1.6L L4 1985 - 1990
Honda ACCORD 2.0L L4 1987 - 1989
Honda ACCORD 2.3L L4 1997 - 2003
Honda ACCORD 1.6L L4 1998 - 2002
Honda ACCORD 2.2L L4 1999 - 2002
Honda AVANCIER 2.3L L4 1999 - 2003
Honda CIVIC 1.6L L4 1987 - 2001
Honda CIVIC 1.7L L4 1997 - 2006
Honda CIVIC 2.4L L4 2011 - 2024
Honda CONCERTO 1.6L L4 1989 - 1995
Honda CR-V 2.4L L4 2011 - 2024
Honda CRX 1.6L L4 1986 - 1998
Honda DOMANI 1.6L L4 1992 - 1999
Honda FR-V 1.7L L4 2004 - 2024
Honda HR-V 1.6L L4 1999 - 2024
Honda INTEGRA 1.6L L4 1993 - 2001
Honda JAZZ 1.7L L4 2003 - 2007
Honda LAGREAT 2.3L L4 2002 - 2003
Honda ODYSSEY 2.3L L4 1997 - 1999
Honda ODYSSEY 2.3L L4 2002 - 2003
Honda ODYSSEY 2.2L L4 1998
Honda ORTHIA 1.6L L4 1995 - 1999
Honda PRELUDE 2.0L L4 1986 - 1992
Honda PRELUDE 2.1L L4 1989 - 1991
Honda PRELUDE 2.2L L4 1996 - 2001
Honda SHUTTLE 2.3L L4 1997 - 2004
Honda STREAM 1.7L L4 2001 - 2006
Honda TORNEO 1.6L L4 1999 - 2002
Isuzu OASIS 2.3L L4 1997 - 1999
Isuzu OASIS 2.2L L4 1999
Isuzu TFR/TFS 2.3L L4 1994 - 1999
Rover 200 1.6L L4 1989 - 1999
Rover 400 1.6L L4 1990 - 2000



Make Volume Engine Code Bore/Stroke
Acura 1.6L L4 D16A1 DOHC 75 X 90
Acura 1.6L L4 D16A1 DOHC 75.2 X 90
Acura 1.6L L4 D16A8 DOHC 75 X 90
Acura 1.6L L4 D16Y8 SOHC/OHC 75 X 90
Acura 1.6L L4 D16Y8 U/K -1 X -1
Acura 1.7L L4 D17A2 SOHC/OHC 75 X 94.4
Acura 1.7L L4 D17A2 SOHC 75 X 94.4
Acura 2.3L L4 F23A1 SOHC 86 X 97
Acura 2.3L L4 F23A7 SOHC/OHC 86 X 97
Acura 2.4L L4 K24Z7 DOHC 87 X 99
Honda 1.6L L4 B16A1 DOHC 81 X 77.4
Honda 1.6L L4 D16A6 SOHC/OHC 75 X 90
Honda 1.6L L4 D16A6 SOHC 75 X 90
Honda 1.6L L4 D16A7 SOHC/OHC 75 X 90
Honda 1.6L L4 D16A8 DOHC 75 X 90
Honda 1.6L L4 D16A9 DOHC 75 X 90
Honda 1.6L L4 D16A SOHC/OHC 75 X 90
Honda 1.6L L4 D16B2 SOHC/OHC 75 X 90
Honda 1.6L L4 D16B5 SOHC/OHC 75 X 90
Honda 1.6L L4 D16B5 SOHC 75 X 90
Honda 1.6L L4 D16B6 SOHC/OHC 75 X 90
Honda 1.6L L4 D16W1 SOHC/OHC 75 X 90
Honda 1.6L L4 D16W4 SOHC/OHC 75 X 90
Honda 1.6L L4 D16W5 SOHC/OHC 75 X 90
Honda 1.6L L4 D16Y2 DOHC 75 X 90
Honda 1.6L L4 D16Y3 DOHC 75 X 90
Honda 1.6L L4 D16Y5 SOHC/OHC 75 X 90
Honda 1.6L L4 D16Y5 SOHC 75.2 X 90
Honda 1.6L L4 D16Y6 SOHC/OHC 75 X 90
Honda 1.6L L4 D16Y7 SOHC/OHC 75 X 90
Honda 1.6L L4 D16Y7 SOHC 75 X 90
Honda 1.6L L4 D16Y8 SOHC/OHC 75 X 90
Honda 1.6L L4 D16Y8 SOHC 75 X 90
Honda 1.6L L4 D16Z2 SOHC/OHC 75 X 90
Honda 1.6L L4 D16Z5 DOHC 75 X 90
Honda 1.6L L4 D16Z6 SOHC/OHC 75 X 90
Honda 1.6L L4 D16Z6 SOHC 75 X 90
Honda 1.6L L4 D16Z7 SOHC/OHC 75 X 90
Honda 1.6L L4 D16Z9 SOHC/OHC 75 X 90
Honda 1.6L L4 ZC1 DOHC 75 X 90
Honda 1.7L L4 D17A1 SOHC/OHC 75 X 94.4
Honda 1.7L L4 D17A1 SOHC 75 X 94.4
Honda 1.7L L4 D17A2 SOHC/OHC 75 X 94.4
Honda 1.7L L4 D17A2 SOHC 75 X 94.4
Honda 1.7L L4 D17A5 SOHC/OHC 75 X 94.4
Honda 1.7L L4 D17A6 SOHC/OHC 75 X 94.4
Honda 1.7L L4 D17A6 SOHC 75 X 94.4
Honda 1.7L L4 D17A7 SOHC/OHC 75 X 94.4
Honda 1.7L L4 D17A7 SOHC 75 X 94.4
Honda 1.7L L4 D17A8 SOHC/OHC 75 X 94.4
Honda 1.7L L4 D17A9 SOHC/OHC 75 X 94.4
Honda 2.0L L4 B20A1 DOHC 81 X 95
Honda 2.0L L4 B20A2 DOHC 81 X 95
Honda 2.0L L4 B20A3 SOHC/OHC 81 X 95
Honda 2.0L L4 B20A4 SOHC/OHC 81 X 95
Honda 2.0L L4 B20A5 DOHC 81 X 95
Honda 2.0L L4 B20A7 DOHC 81 X 95
Honda 2.0L L4 B20A8 DOHC 81 X 95
Honda 2.0L L4 B20A9 DOHC 81 X 95
Honda 2.0L L4 SOHC 81 X 95
Honda 2.1L L4 B21A1 DOHC 83 X 95
Honda 2.2L L4 F23A7 SOHC 86 X 97
Honda 2.2L L4 H22A4 DOHC 87 X 90.7
Honda 2.2L L4 H22A5 DOHC 87 X 90.7
Honda 2.2L L4 H22A7 DOHC 87 X 90.7
Honda 2.3L L4 F23A1 SOHC/OHC 86 X 97
Honda 2.3L L4 F23A1 SOHC 86 X 97
Honda 2.3L L4 F23A3 SOHC/OHC 86 X 97
Honda 2.3L L4 F23A4 SOHC 86 X 97
Honda 2.3L L4 F23A5 SOHC/OHC 86 X 97
Honda 2.3L L4 F23A5 SOHC 86 X 97
Honda 2.3L L4 F23A7 SOHC/OHC 86 X 97
Honda 2.3L L4 F23A SOHC/OHC 86 X 97
Honda 2.4L L4 K24Z7 DOHC 87 X 99
Isuzu 2.2L L4 F23A7 SOHC 86 X 97
Isuzu 2.3L L4 F23A7 SOHC/OHC 86 X 97
Isuzu 2.3L L4 SOHC 86 X 97
Rover 1.6L L4 D 16 A7 SOHC/OHC 75 X 90
Rover 1.6L L4 D 16 A8 DOHC 75 X 90
Rover 1.6L L4 D 16 A9 DOHC 75 X 90
Rover 1.6L L4 D16B2 SOHC/OHC 75 X 90

* photo may vary from actual product *
