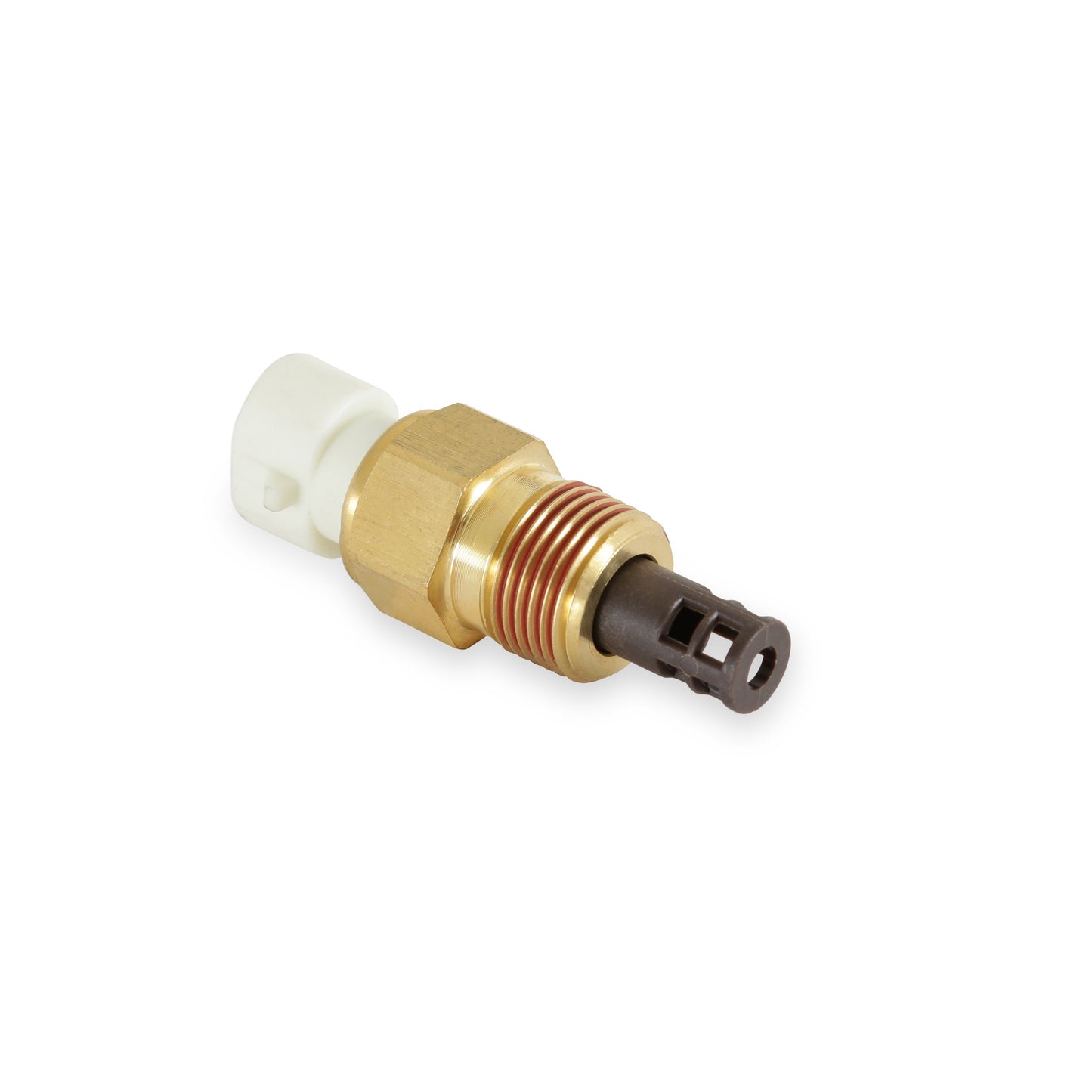

SENSOR AIR INLET TEMPERATURE

AEM's Air Inlet Temperature Sensor Kits (AIT) senses the air temperature on the inlet side of the engine. Air Temp Sensor Kit. 3/8"NPT. Includes: Air Temp Sensor, 3/8"NPT Aluminum Bung, Connector & Pins

30-2010 - Air Temp Sensor Kit

Accuracy: < 1.5C / 2.7F

 Operating Temp: -40C to 135C / -40F to 275F

Resistive Range (?):

Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil

Sensor Body Material: Brass

Thread: 3/8" NPT

Hex Size: 3/4"

Installation Torque: 20Nm / 15 ft-lbs

Weight: 33.3g

Electrical Termination: Weatherproof connector. Includes Mating Connector, Pins & Wire Seals Includes: Air Temp Sensor, 3/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
