TOMEI EXHAUST MANIFOLD KIT EXPREME FA20 ZN6/ZC6 UNEQUAL LENGTH with TITAN EXHAUS
TOMEI EXHAUST MANIFOLD KIT EXPREME FA20 ZN6/ZC6 UNEQUAL LENGTH with TITAN EXHAUS
SKU:TB6010-SB03B
Couldn't load pickup availability
**SEND US AN EMAIL FOR PRICE MATCHING**
**PLEASE CONTACT US BEFORE ORDERING THE PARTS FOR AVAILABILITY**
Item Description
Unequal length, 4-1 design for torque and response
The FA20 boxer engine inside the Scion FR-S/Subaru BRZ can be said to be the successor to the EJ engine. At Tomei Powered, through our extensive testing, we've produced numerous EJ engine and exhaust parts. By applying our knowledge and experience of EJ engines to the ZN6/ZC6, we conducted even further tests to produce 2 new exhaust manifolds with different characteristics. Using this in conjunction with our new joint pipe, released at the same time, can yield even better results.

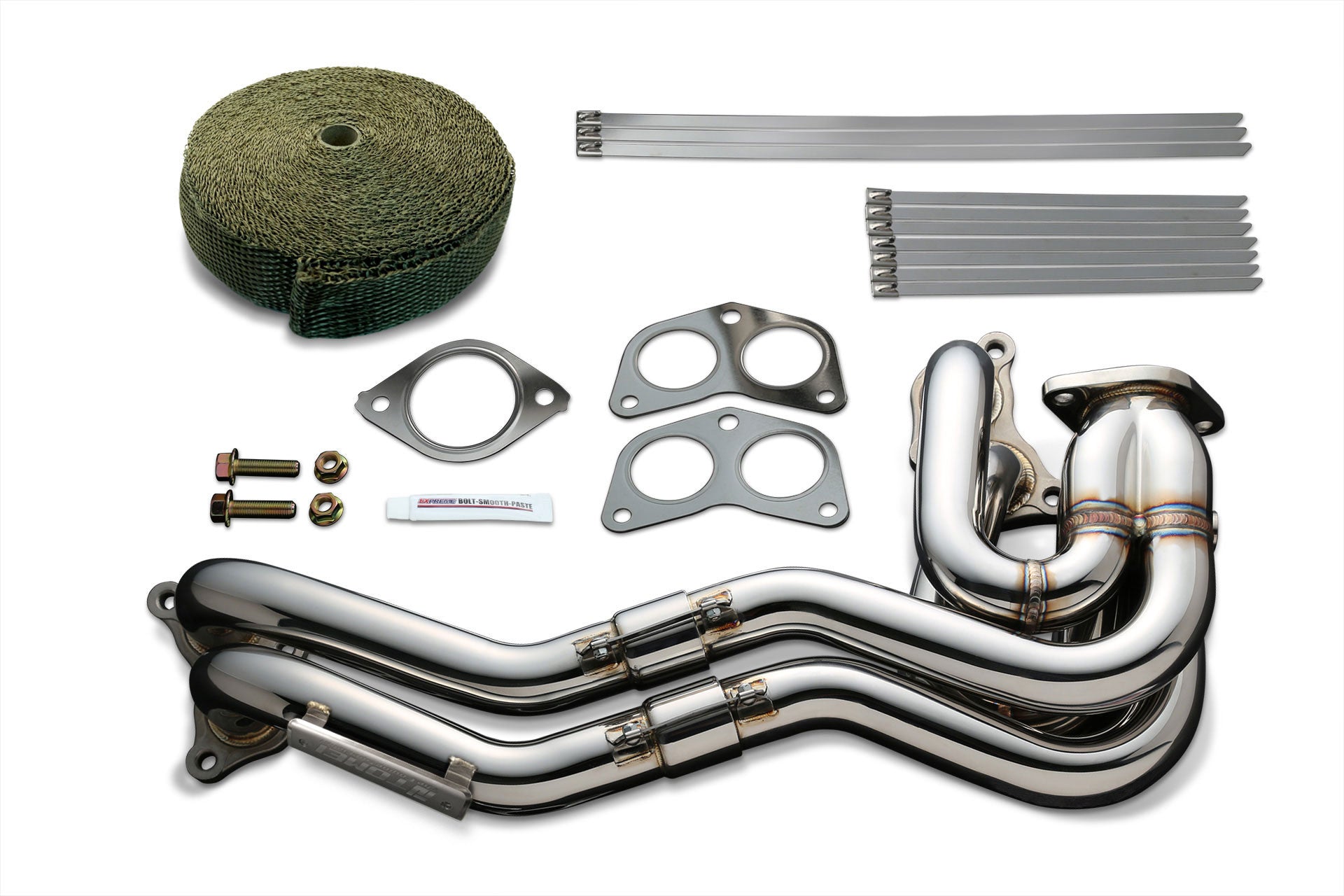

KIT CONTENTS
- EXHAUST MANIFOLD (1)
- GASKET (ENGINE SIDE) (2)
- GASKET (JOINT PIPE SIDE) (1)
- FLANGE BOLT (2)
- FLANGE NUT (2)
- TITAN EXHAUST BANDAGE (1)
- BANDAGE BAND (10)
- BOLT SMOOTH PASTE (1)
Includes all gaskets, nuts, bolts etc. required for installation. Titan exhaust bandage also included to protect surrounding components.

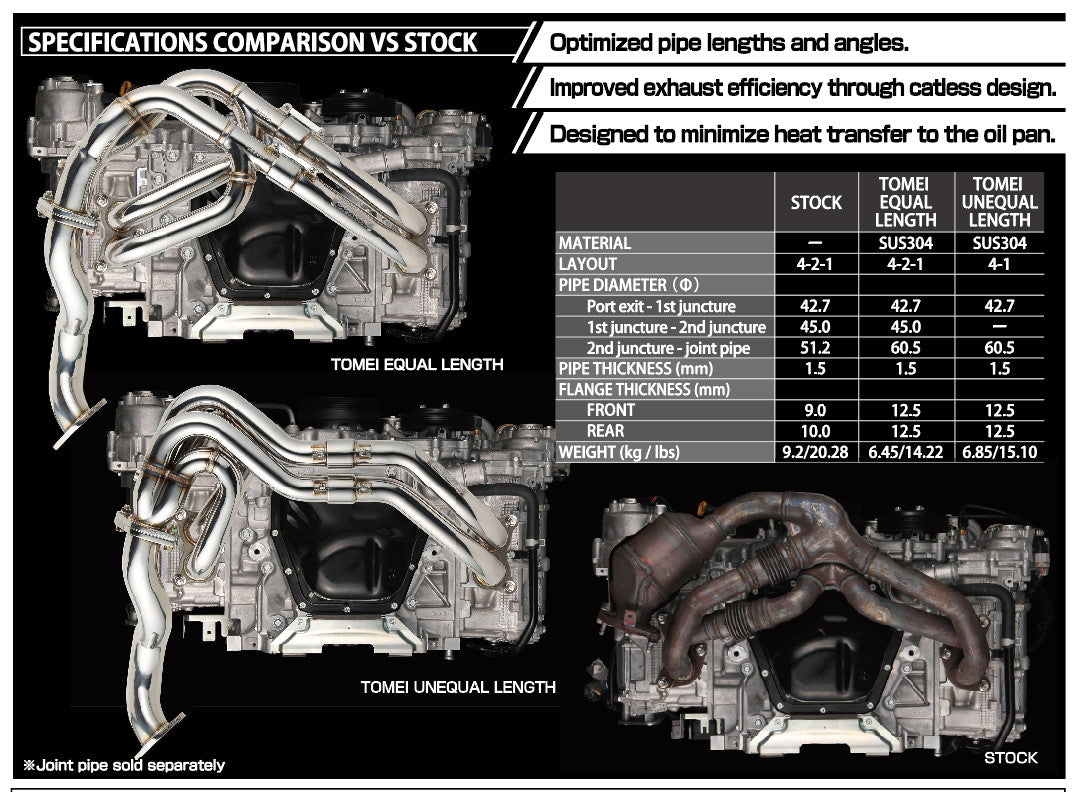

SPECIFICATIONS COMPARISON VS STOCK

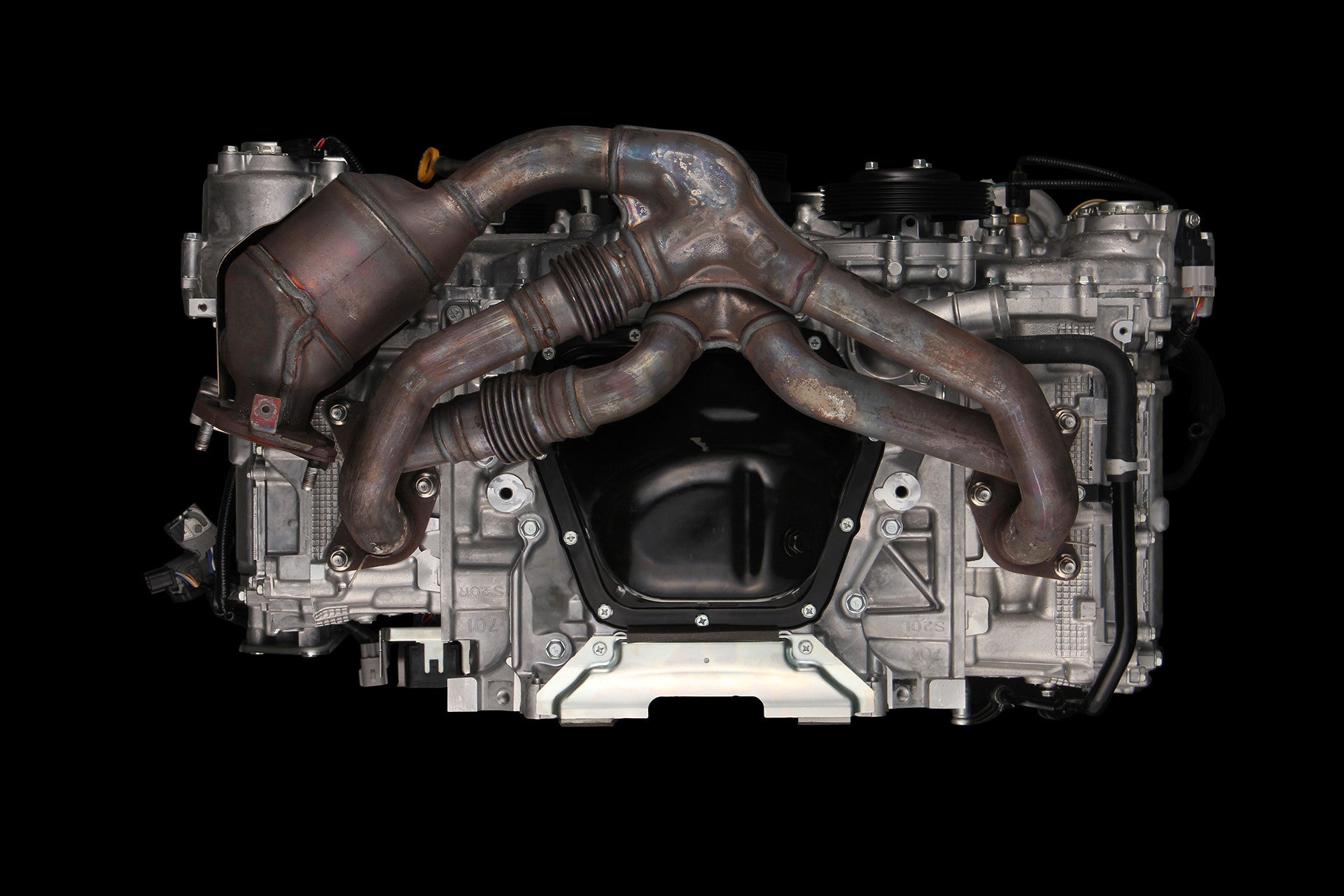

OEM
| Unequal length layout for improved torque characteristics. |
| Improved exhaust efficiency through catless design. |
| Designed to minimize heat transfer to the oil pan. |
※Joint pipe sold separately
TOMEI UNEQUAL LENGTH
TOMEI EQUAL LENGTHSTOCK
|
|
MATERIAL | LAYOUT | PIPE DIAMETER（Φ） |
PIPE THICKNESS (mm) |
FLANGE THICKNESS (mm) |
WEIGHT (kg / lbs) |
|||
| Port exit - 1st juncture |
Port exit - 1st juncture |
2nd juncture - joint pipe |
Front | Rear | |||||
| TOMEI UNEQUAL LENGTH |
SUS304 | 4-1 | 42.7 | - | 60.5 | 1.5 | 12.5 | 12.5 | 6.85 / 15.1 |
| TOMEI EQUAL LENGTH |
SUS304 | 4-2-1 | 42.7 | 45.0 | 60.5 | 1.5 | 12.5 | 12.5 | 6.45 / 14.22 |
| OEM | - | 4-2-1 | 42.7 | 45.0 | 51.2 | 1.5 | 9.0 | 10.0 | 9.2 / 20.28 |
OTHER FEATURES

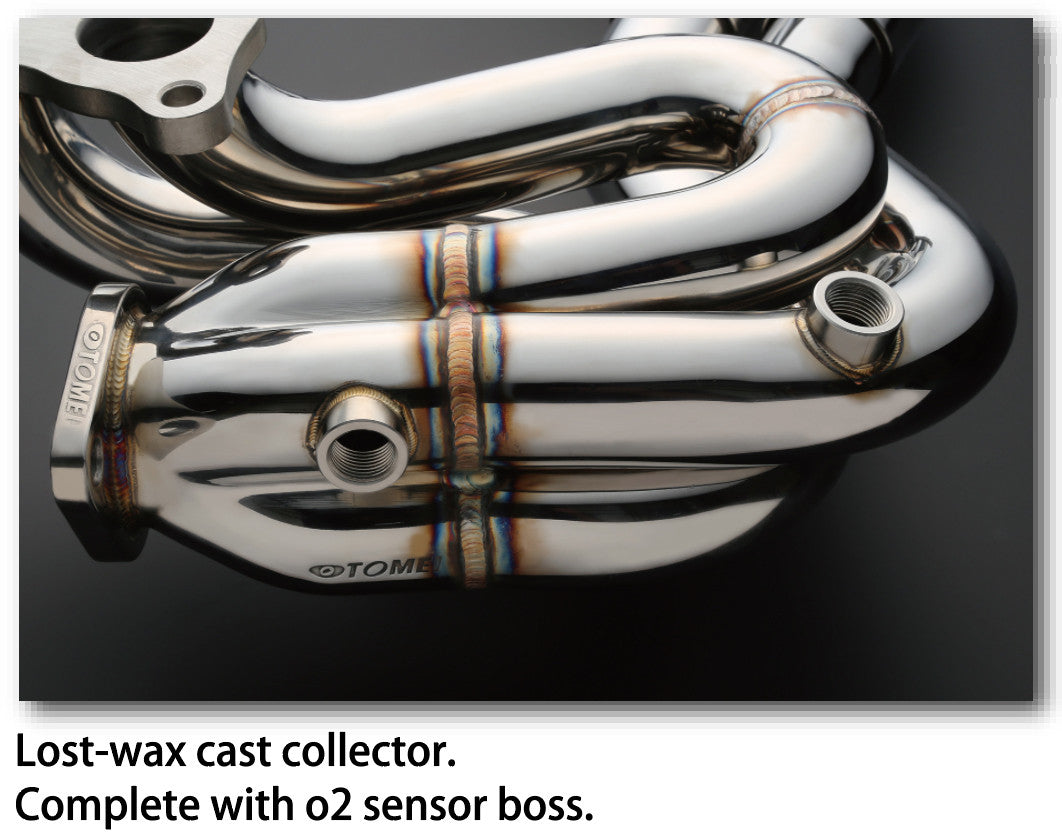

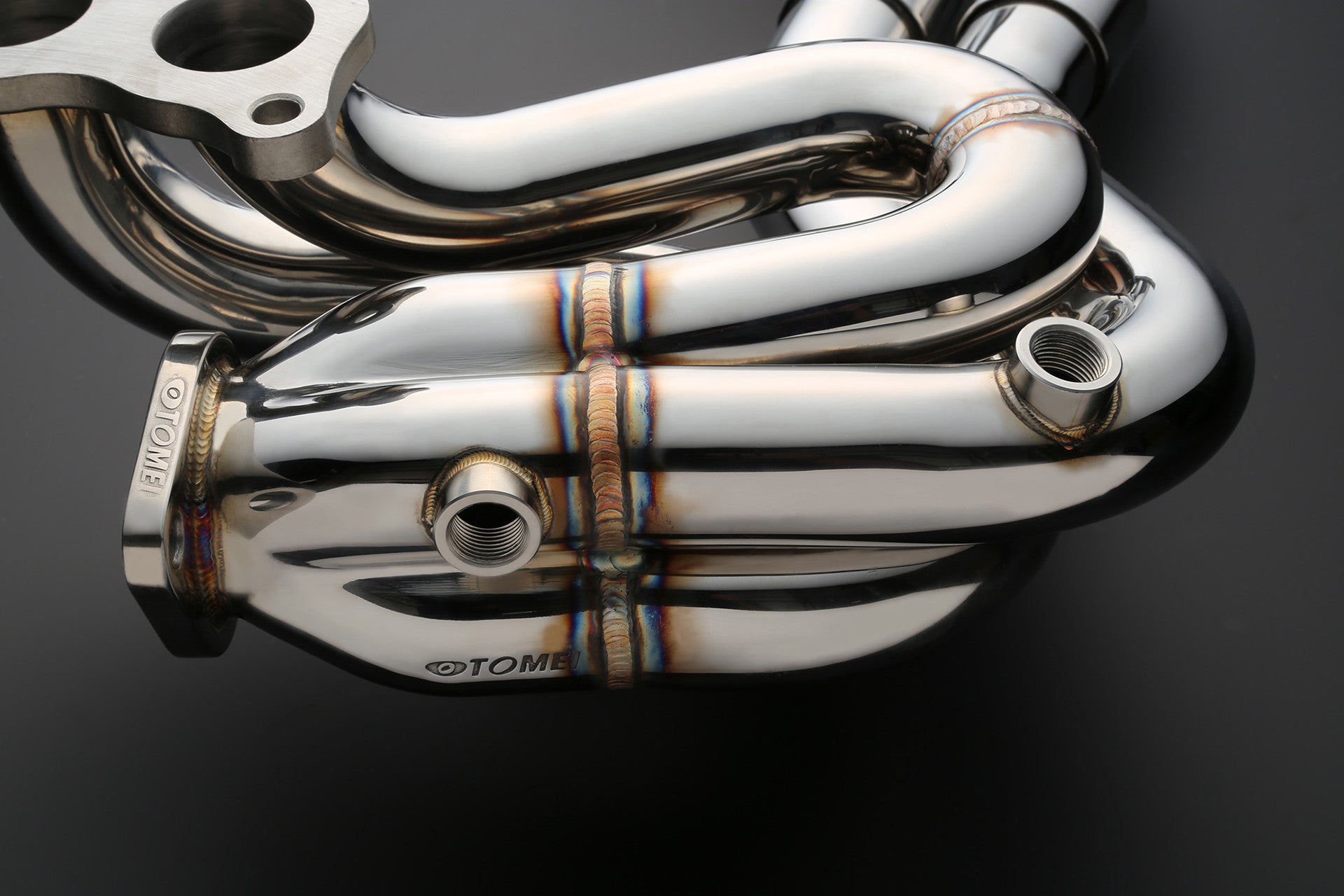

Lost-wax cast collector.Complete with o2 sensor boss.

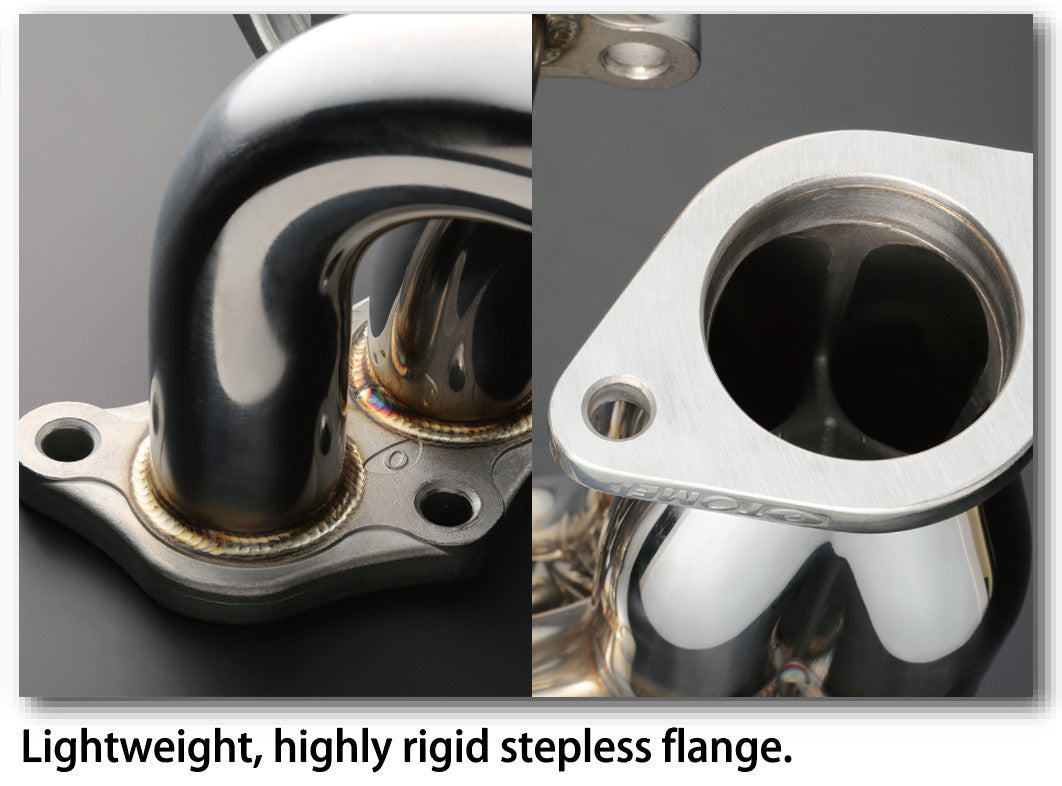

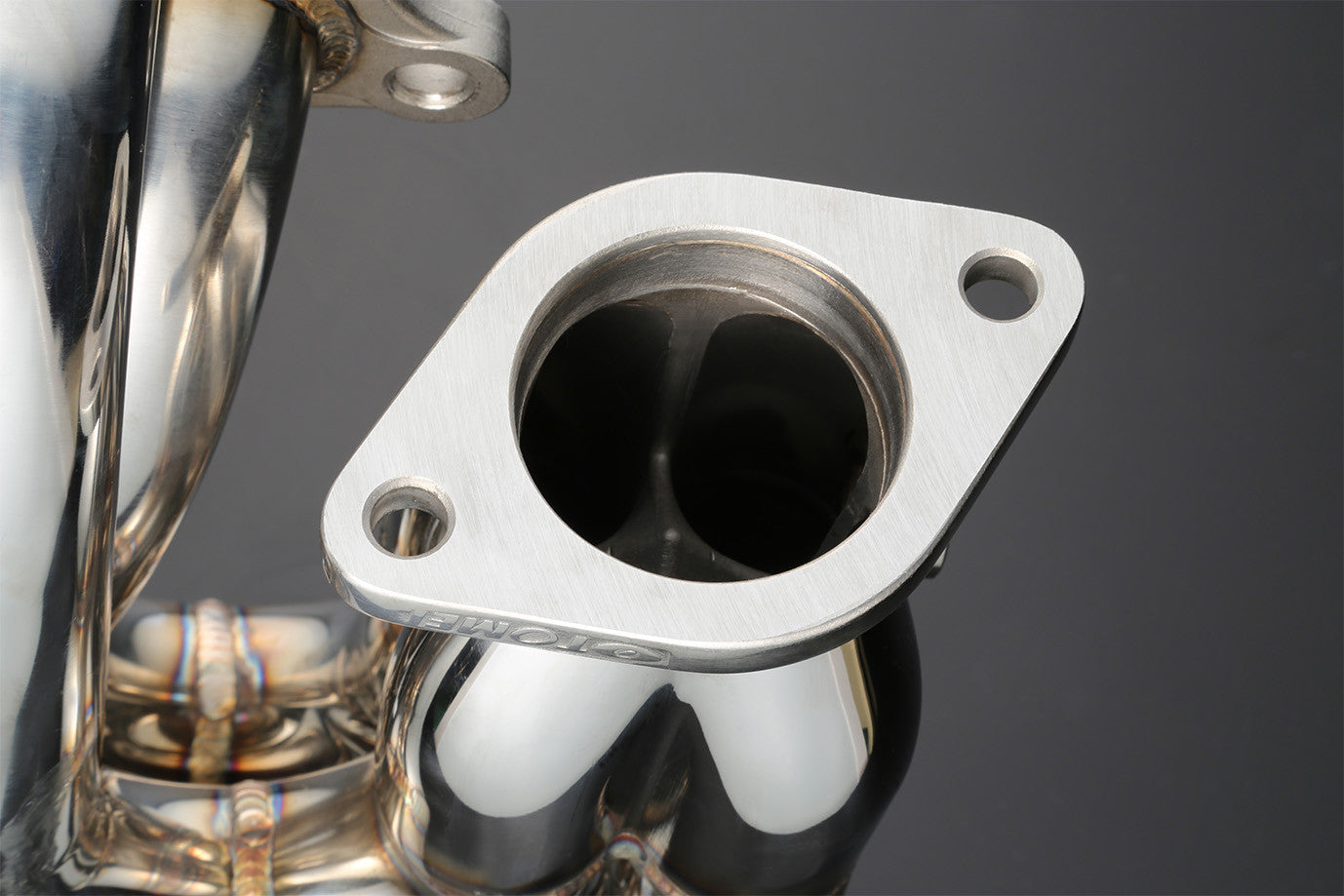

Lightweight, highly rigid stepless flange.

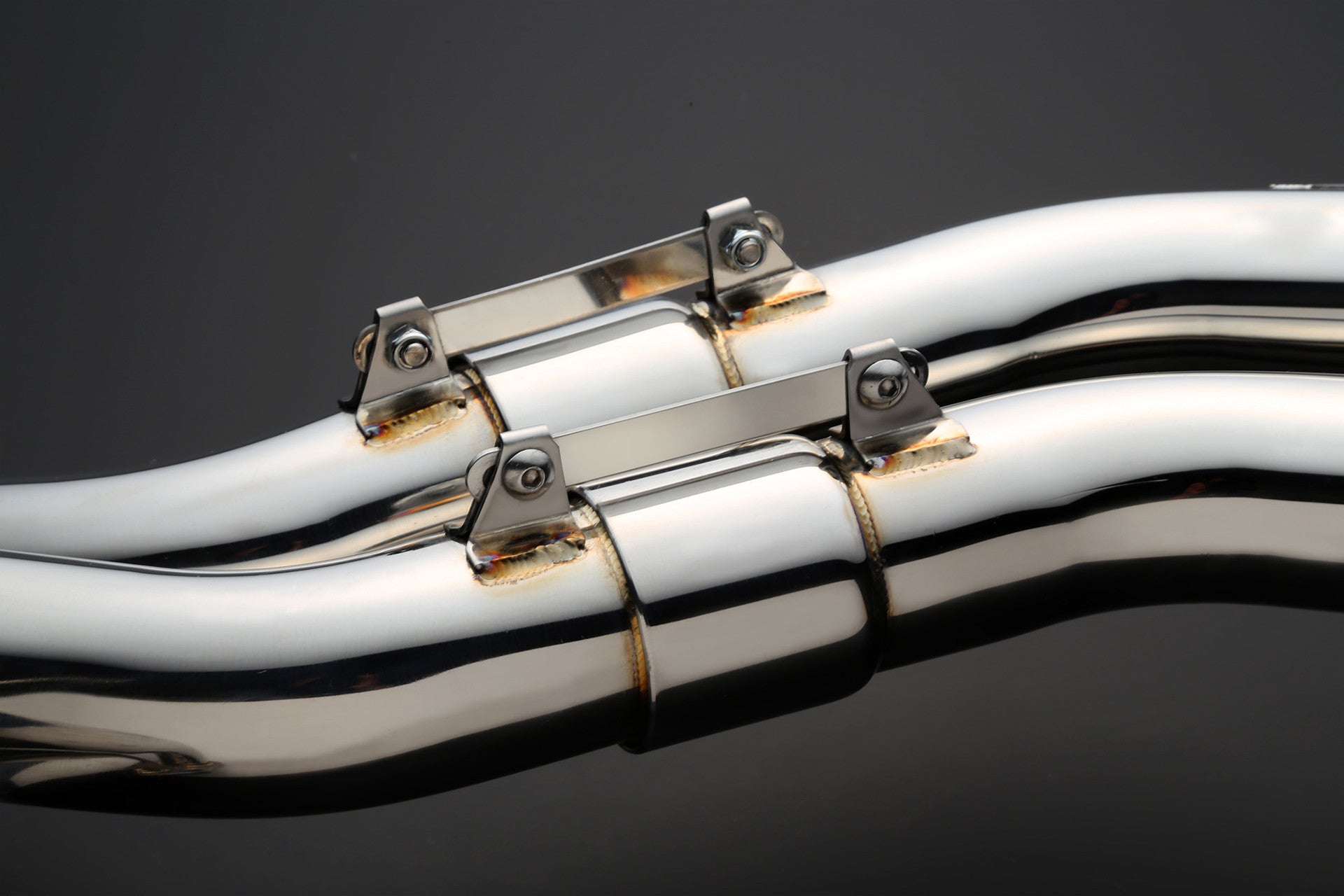

Slider adjusts for the lost-wax cast collector, heat expansion and gasket thickness.
PERFORMANCE
|

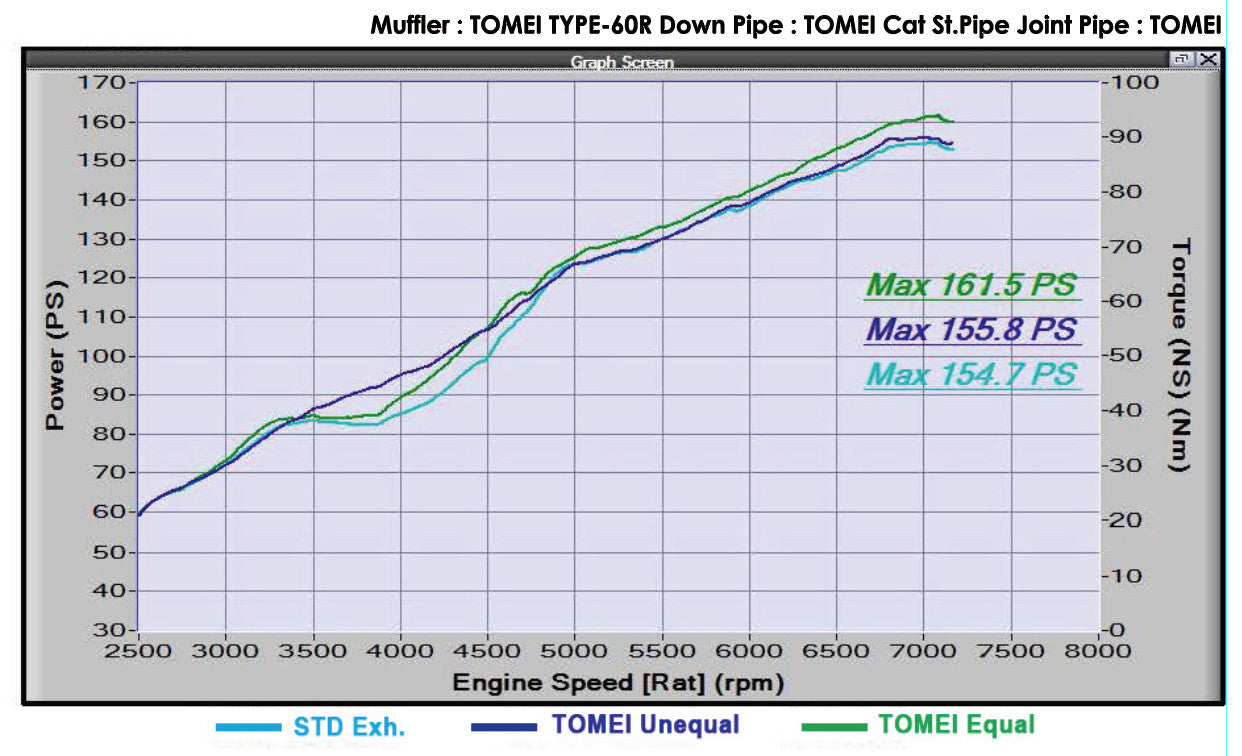

TEST MODEL The Engine Dyno graph on the left shows the overall perforamnce increase throughout all RPM ranges to give the overall improved performance results. This was achived with extensive engine bench testing time from our R&D. This is the results based on the Z33 (350Z) exhaust manifold (headers) + straight front pipes which brings out the overall higher performance throughout the entire RPM range. |
 |
STRIVING for PERFECTION
The Engine Dyno graph on the left shows the overall perforamnce increase throughout all RPM ranges to give the overall improved performance results. This was achived with extensive engine bench testing time from our R&D.
This is the results based on the Z33 (350Z) exhaust manifold (headers) + straight front pipes which brings out the overall higher performance throughout the entire RPM range.
ROAD TEST
All data is logged and tested for accruate testing and attention to detail on the products efficiency for finding the best results.
LIGHTER
Case Example: Lancer Evolution where the exhaust is situated at the front of the car, every bit of weight reduction there helps a lot in improving the handling of the cars cornering characteristics. Every bit helps for you to gain that extra edge over your rivals.
QUALITY
LOST WAX PROCESSED
EXPREME is manufactured from various manufacturing methods combined especially for mass production high quantity. But the flange, bend sections & gathering section are finished off with lost wax processing for superior quality.
The benefits of "Lost Wax" Processing
* Stable High Quality
* High Intensity
* Durable
(Smooth inner walls & killer looks)
Lost wax processed on the gathering section and flange
SUS304 MATERIAL
The EXPREME products are made from stainless steel SUS304 material. It is light weight, has best resistance to corrosion, superior in heat resistance, better exhaust race harmonics, helps increase your cars value.
QUALITY CONTROL
All EXPREME products are screened with strict quality control. Even mass productions our QA levels are high to ensure the best possible product that will be worthy of the TOMEI brand name and guaranteed to meet & exceed all users expectations.
* Main Inspection Points
* Each Section Size
* Flange Quality
* No signs of burr or flash
* No signs of scratches or leaks
* Installation tested
* Weight is checked
* There are more inspection points but each product has different extra points addressed.
* photo may vary from actual product *
