Jedset Performance

SKU:TB6100-MZ05A

**SEND US AN EMAIL FOR PRICE MATCHING**

**PLEASE CONTACT US BEFORE ORDERING THE PARTS FOR AVAILABILITY**

Item Description

FULL TITANIUM MID PIPE

Application:
MAZDA RX-7 FD3S

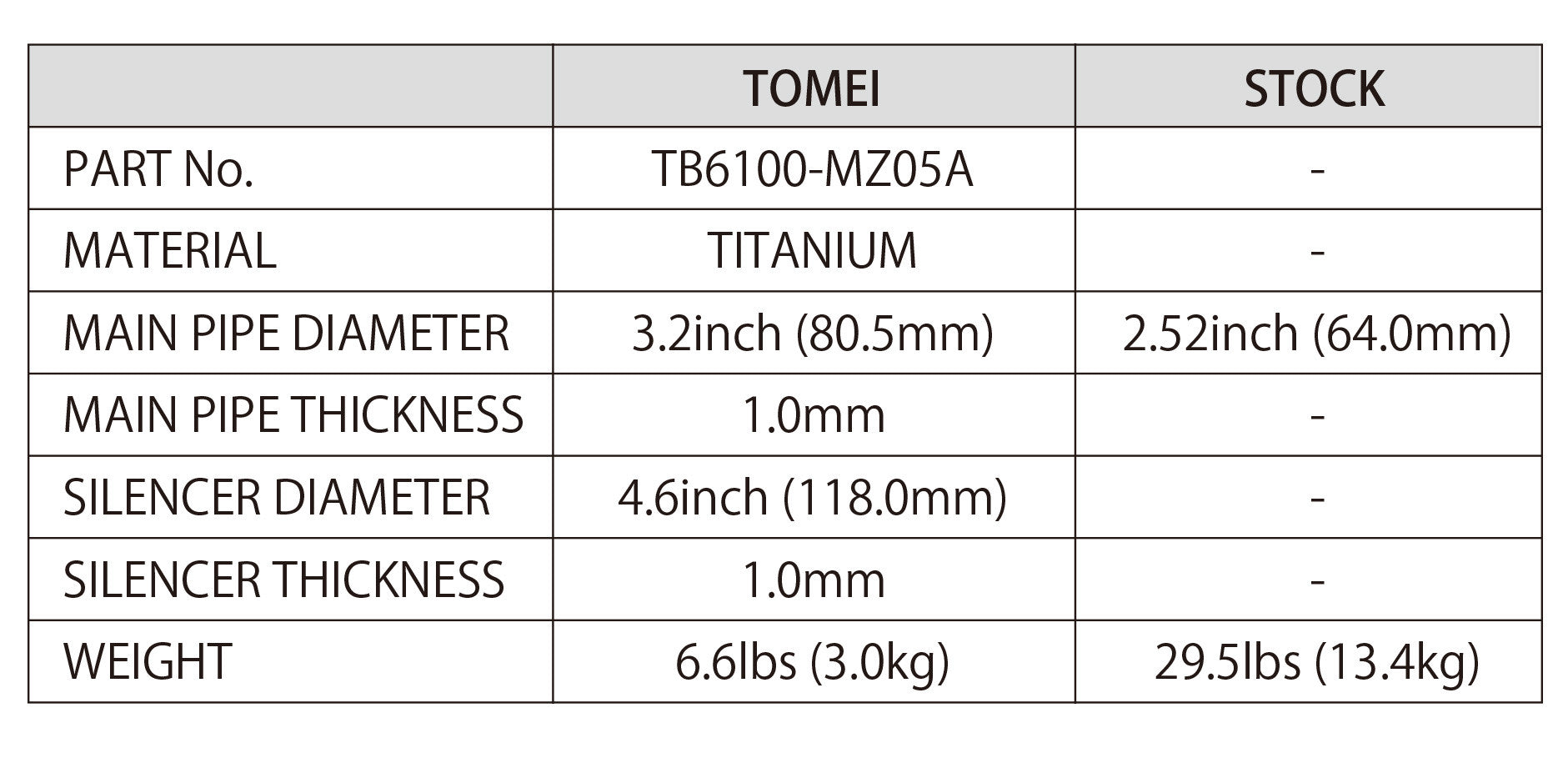

SPECIFICATION

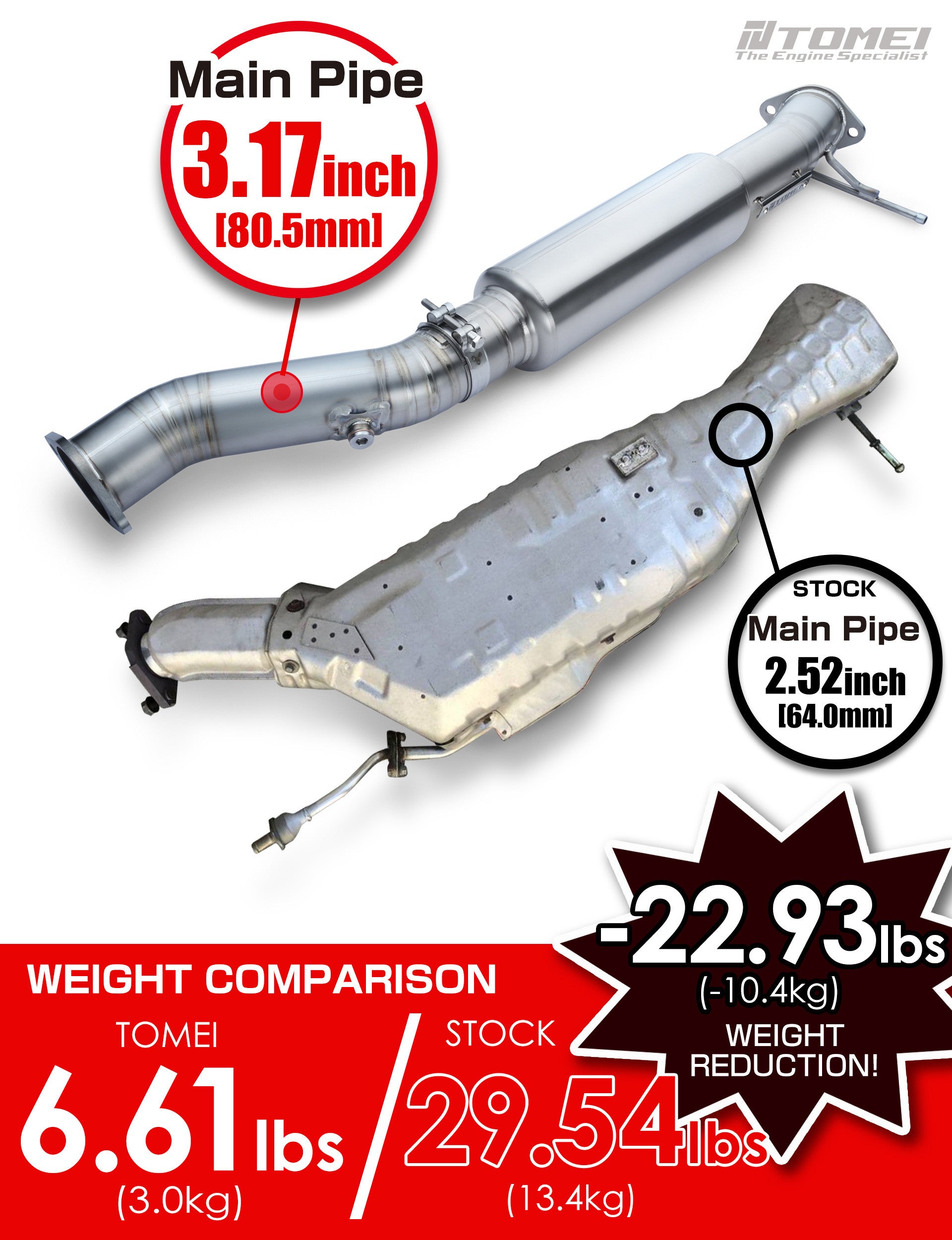

COMPARISON VS. OEM

	TOMEI	OEM
MATERIAL	Ti	-
MAIN PIPE DIAMETER	3.17inch(80.5mm)	2.52inch(64.0mm)
MAIN PIPE THICKNESS	1.0mm	-
SILENCER DIAMETER	4.65inch(118mm)	-
SILENCER THICKNESS	1.0mm	-
WEIGHT	6.61lbs(3.0kg)	29.54lbs(13.4kg)

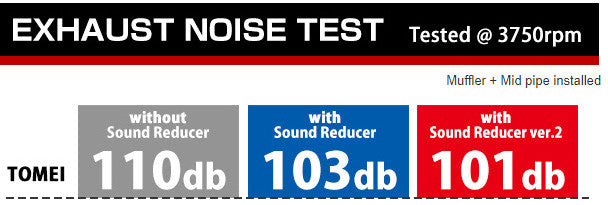

EXHAUST NOIZE TEST  Tested @3750rpm

Muffler + Mid pipe installed

FULLTITANIUM MUFFLER

Application:
MAZDA RX-7 FD3S

SPECIFICATION
COMPARISON VS. OEM

	TOMEI	OEM
MATERIAL	Ti	-
MAIN PIPE DIAMETER	3.17inch(80.5mm)	2.52inch(64.0mm)
MAIN PIPE THICKNESS	1.0mm	-
SILENCER DIAMETER	5.98inch(152mm)	-
SILENCER THICKNESS	1.0mm	-
EXIT DIAMETER	4.53inch(115mm)	2.52inch(64.0mm)
EXIT THICKNESS	1.0mm	-
FLANGE THICKNESS	-	-
WEIGHT	10.8lbs(4.9kg)	36.16lbs(16.4kg)

EXAUST NOIZE TEST  Tested @750rpm

Only Muffler installed

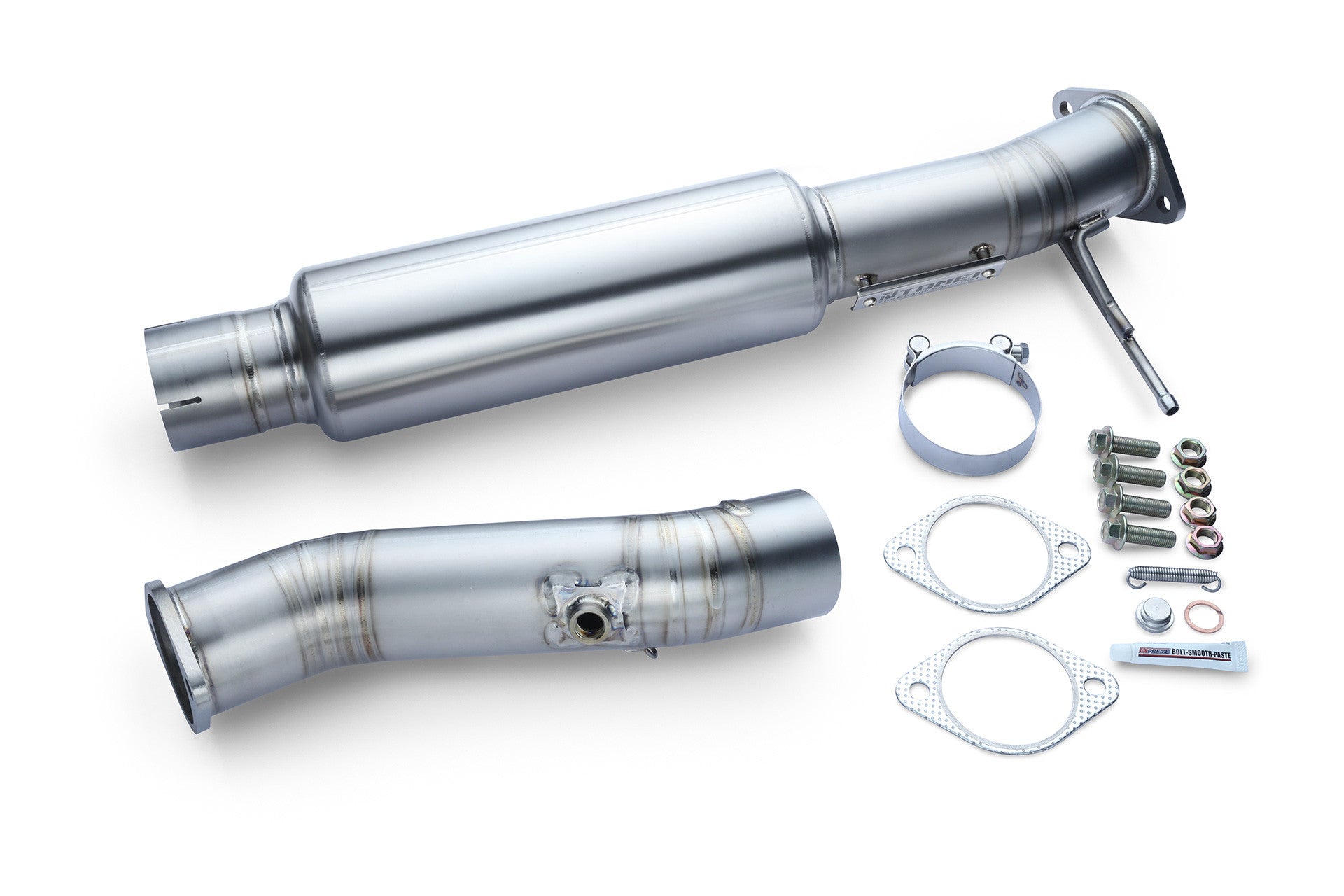

COMPLETE KIT

This kit includes all the componets necessayr for installation including the bolts and nuts. Bolt Smooth is also included to help prevent the bolts becoming seized under heat.

* photo may vary from actual product *
