TOMEI FULL TITANIUM MUFFLER KIT EXPREME Ti BNR34

TOMEI FULL TITANIUM MUFFLER KIT EXPREME Ti BNR34

TB6090-NS05C

$1,989.49 CAD
$2,088.97 CAD $1,989.49 CAD
Sale Sold out

**SEND US AN EMAIL FOR PRICE MATCHING**

**PLEASE CONTACT US BEFORE ORDERING THE PARTS FOR AVAILABILITY**

Item Description


The Ultimate High-Performance Muffler
for the 2nd Generation GT-R

High quality production, for true competition use without compromise. Only the best Titanium grade materials are used. From the special racing layout design, made as straight as possible, to the high flow silencer. We have poured our knowledge into it all. When you see our EXPREME Ti system, you can then understand that ours is unrivaled in terms of performance and price.


BNR32


BCNR33


BNR34


COMPARISON TO OEM

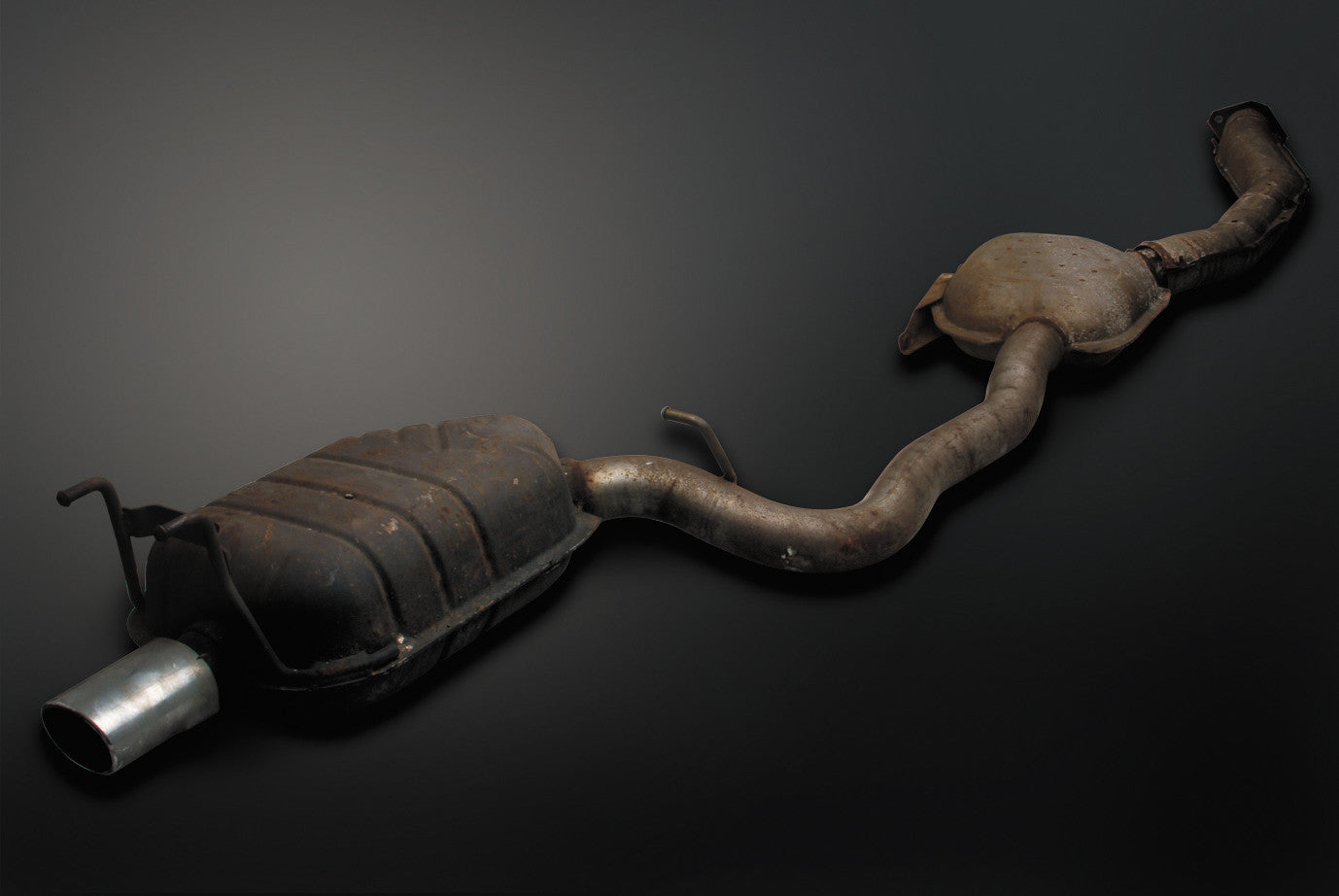

▲BNR32 OEM

Designed for results, not too thick or thin. For best overall power gains, weight reductions and value for money.

BNR32 BCNR33 BNR34
TOMEI OEM TOMEI OEM TOMEI OEM
MATERIAL TITANIUM IRON TITANIUM IRON TITANIUM IRON
MAIN PIPE
DIAMETER		 3.51inch
(89.1mm)		 2.76inch
(70.0mm)		 3.51inch
(89.1mm)		 2.68-2.5inch
(68-63.5mm)		 3.51inch
(89.1mm)		 2.68-2.5inch
(68-63.5mm)
MAIN PIPE
THICKNESS		 1.0mm 1.5mm 1.0mm 1.5mm 1.0mm 1.5mm
SILENCER
DIAMETER		 5.98inch
(152mm)		 - 5.98inch
(152mm)		 - 5.98inch
(152mm)		 -
SILENCER
THICKNESS		 1.0mm - 1.0mm - 1.0mm -
EXIT
DIAMETER		 4.53inch
(115mm)		 3.62-2.76inch
（92-70mm）		 4.53inch
(115mm)		 3.15-2.83inch×2
（80-72mm）×2		 4.53inch
(115mm)		 3.15inch×2
(80mm×2)
EXIT
THICKNESS		 1.0mm - 1.0mm - 1.0mm -
FLANGE
THICKNESS		 8.0mm 8.0mm 8.0mm 8.0mm 8.0mm 8.0mm
WEIGHT 16.3lbs
(7.35kg)		 43lbs
(19.5kg)		 15.8lbs
(7.15kg)		 41.7lbs
(18.9kg)		 15.6lbs
(7.05kg)		 39.7lbs
(18.0kg)
WEIGHT
COMPARISON 		BNR32 BCNR33 BNR34
TOMEI OEM TOMEI OEM TOMEI OEM
16.3lbs
(7.35kg) 		43lbs
(19.5kg) 		15.8lbs
(7.15kg) 		41.7lbs
(18.9kg) 		15.6lbs
(7.05kg) 		39.7lbs
(18.0kg)

BNR32
BCNR33
BNR34
27.0lbs
(12.15kg)		 25.9lbs
(11.75kg)		 24.1lbs
(10.95kg)

Weight Reduction!!

RACING LAYOUT

When aiming for true performance efficiency, we had chosen to design the exhaust with the least amount of bends as possible. Just like the true purpose built race cars, in a racing layout design, yet to still comply with the stock body design so it can be fitted to any street used vehicles.

3 SECTION PIPE ASSEMBLY

The conventional style flange is not used to help reduce weight even further. The use of the springs and clamps eliminates the need for gaskets as well.

BEST VALUE & PERFORMANCE

The design targets were strictly for performance use and for the best value for money for our end users.

HIGH SOUND QUALITY

Only the racing layout muffler design in full Titanium can produce the exhilarating race sound that is second to none.


KIT CONTENTS

    • MAIN PIPE A (1)
    • MAIN PIPE B (1)
    • SILENCER ASSY (1)
    • GASKET (1)
    • FLANGE NUT M10 (2)
    • CLAMP BAND (2)
    • SPRING (4)
    • SILENCER BAND (1)
    • SILENCER BAND RUBBER (1)
    • FLANGE NUT M8 (2)
    • FLANGE BOLT M8 (1)
    • SOUND REDUCER ver.2 (1)

* photo may vary from actual product *
