TOMEI FULL TITANIUM MUFFLER KIT EXPREME Ti Z33
TOMEI FULL TITANIUM MUFFLER KIT EXPREME Ti Z33
SKU:TB6090-NS04A
Couldn't load pickup availability
**SEND US AN EMAIL FOR PRICE MATCHING**
**PLEASE CONTACT US BEFORE ORDERING THE PARTS FOR AVAILABILITY**
Item Description
With an overall dramatic performance
improvement & weight reduction.
Breathe new life into your 350Z.
High quality production, for true competition use without compromise. Only the best Titanium grade materials are used. From the special racing layout design, made as straight as possible, to the high flow silencer. We have poured our knowledge into it all. When you see our EXPREME Ti system, you can then understand that ours is unrivaled.
APPLICATION ： 350Z VQ35DE/HR
OEM COMPARISION
▲OEM VQ35DE
The exhaust flow design was the main focus in the pipe design, the best pipe thickness for weight and strength with pipe diameter to suit torque and all power gains throughout the entire power band.

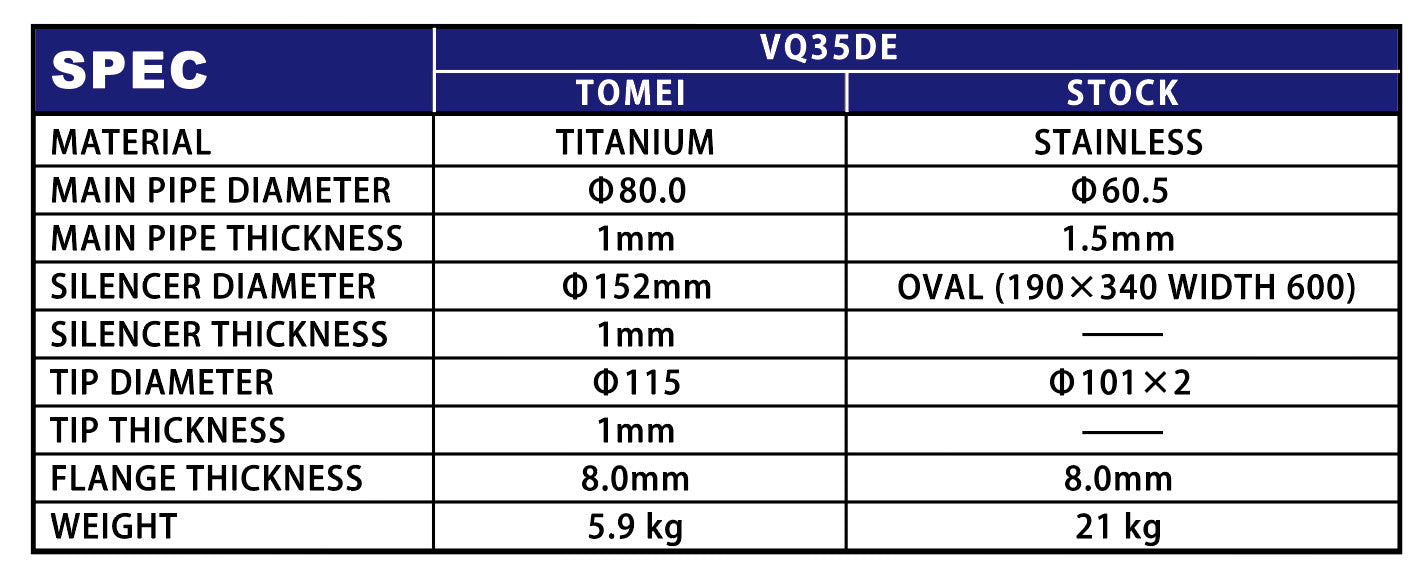

| TOMEI | OEM | |
| MATERIAL | TITANIUM | STAINLESS |
| MAIN PIPE DIAMETER |
3.15inch (80.0mm) |
2.38inch (60.5mm) |
| MAIN PIPE THICKNESS |
1.0mm | 1.5mm |
| SILENCER DIAMETER |
5.98inch (152mm) |
- |
| SILENCER THICKNESS |
1.0mm | - |
| TIP DIAMETER |
4.53inch (115mm) |
3.98inch×2 (101mm×2) |
| TIP THICKNESS |
1.0mm | - |
| FLANGE THICKNESS |
8.0mm | 8.0mm |
| WEIGHT | 13.1lbs(5.9kg) | 46.3lbs(21kg) |
| WEIGHT COMPARISON |
TOMEI | OEM |
| 13.1lbs (5.9kg) |
46.3lbs (21kg) |
40.4lbs
(15.1kg)
Weight Reduction!!
RACING LAYOUT
For the best exhaust efficiency results minimal bends and curves was the design focus points on this product which aided with the supreme results.
3 PIECE ASSEMBLY
No flanges were fitted for increased weight savings and for a better finish with the race look secure springs and clamp methods.
PERFORMANCE VALUE
The best performance is made possible with the best materials and still with keeping it within everyone's reach.
DRY RACE SOUND
The instinctive sound of a true race exhaust sound that a Titanium material exhaust gives will intoxicate you with the dry race exhaust sound.
KIT CONTENTS
- MAIN PIPE A （1）
- MAIN PIPE B （1）
- SILENCER ASSY （1）
- GASKET t=2.0mm （1）
- FLANGE NUT M10 P=1.25mm （2）
- CLAMP BAND "MIKALOR" SW2 79-85 （2）
- SPRING （4）
- SILENCER BAND （1）
- SILENCER BAND RUBBER （1）
- BOLT M8 L＝25ｍｍ （1）
- NUT M8 （1）
- SOUND REDUCER ver.2 （1）
- BOLT SMOOTH PASTE （1）
* photo may vary from actual product *
