Check the product for a stamped "TOMEI" & product "Type" on the case of the product,some older models do not have the type name on the case.
You can refer to this page to confirm the model when there is no type name stamped on the product.
Jedset Performance

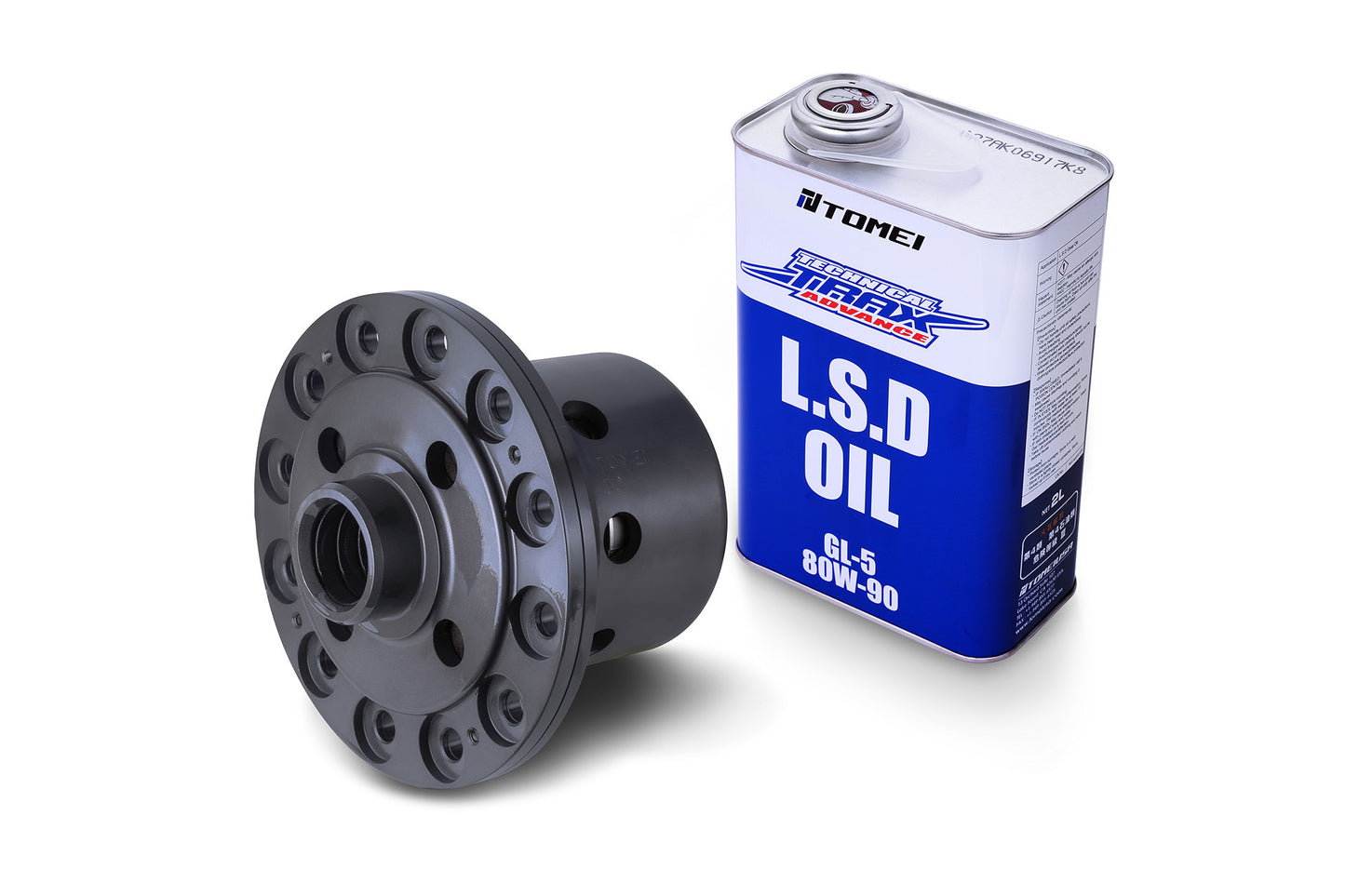

TOMEI LSD KIT TECHNICAL TRAX ADVANCE NISSAN HA2
TOMEI LSD KIT TECHNICAL TRAX ADVANCE NISSAN HA2
SKU:TC101A-NSHA2
Regular price
$1,681.04 CAD
Regular price
$1,765.10 CAD
Sale price
$1,681.04 CAD
Unit price
per
Couldn't load pickup availability
**SEND US AN EMAIL FOR PRICE MATCHING**
**PLEASE CONTACT US BEFORE ORDERING THE PARTS FOR AVAILABILITY**
Item Description
| TYPE | PCD | DISC | SPRING | Size & No. of Ring Gear Bolts | No. of Serration Teeth(T) | Flange In Dia.(Φ) | Initial Torque Pre Setting (kg.m) | Super High Initial | Pressure Ring Ring Cam Angle (°) |
||||||
| Ext Dia. | No. (In Dia.) | No. (Ex Dia.) | Thick-ness | No. Ex Teeth | No. In Teeth | No. Teeth N/A | No. Teeth N/A Strengthe-ning | ||||||||
| HA2 | 150 | 106 | 12 | 12 | 1.7 | OPT | OPT | 2 | N/A | M13 (10) |
31T | 33 | 16.5-18.5 | ○ | 60×60 |
TYPE-HA
Main body dimensions.
| Size of ring gear bolts |
Φ13.0 （Hole diameter Φ13.3） |
| Number of ring gear bolts | 10 |
| Ring gear bolts PCD | 150 |
Dimensions of the flanges left side slot
| Number of Teeth |
31Ｔ |
| snap ring | Without |
| Washer | Without |
| The manufacturers genuine parts side flange part number. |
38220-AR011 |
Dimensions of the flanges right side slot
| Number of Teeth |
31Ｔ |
| snap ring | With |
| Washer | Without |
| The manufacturers genuine parts side flange part number. |
38220-AR010 |
| TYPE | PCD | DISC | SPRING | Size & No. of Ring Gear Bolts | No. of Serration Teeth(T) | Flange In Dia.(Φ) | Initial Torque Pre Setting (kg.m) | Super High Initial | Pressure Ring Ring Cam Angle (°) |
||||||
| Ext Dia. | No. (In Dia.) | No. (Ex Dia.) | Thick-ness | No. Ex Teeth | No. In Teeth | No. Teeth N/A | No. Teeth N/A Strengthe-ning | ||||||||
| AX2 | 150 | 106 | 8 | 8 | 1.7 | OPT | OPT | 2 | N/A | M12 (10) |
29T | 32 | 16.5-18.5 | ○ | 60×60 |
| CX2 | 150 | 106 | 10 | 10 | 1.7 | OPT | OPT | 2 | N/A | M13 (10) |
29T | 32 | 16.5-18.5 | ○ | 60×60 |
| EX2 | 150 | 106 | 10 | 10 | 1.7 | OPT | OPT | 2 | N/A | M13 (10) |
30T | 32 | 16.5-18.5 | ○ | 60×60 |
| EA2 | 150 | 106 | 10 | 10 | 1.7 | OPT | OPT | 2 | N/A | M13 (10) |
30T | 32 | 16.5-18.5 | ○ | 60×60 |
| IA2 | 150 | 106 | 8 | 8 | 1.7 | OPT | OPT | 2 | N/A | M12 (10) |
29T | 32 | 16.5-18.5 | ○ | 60×60 |
| HA2 | 150 | 106 | 12 | 12 | 1.7 | OPT | OPT | 2 | N/A | M13 (10) |
31T | 33 | 16.5-18.5 | ○ | 60×60 |
| HX2 | 150 | 106 | 12 | 12 | 1.7 | OPT | OPT | 2 | N/A | M13 (10) |
31T | 33 | 16.5-18.5 | ○ | 60×60 |
HA/HX High Initial Torque SPEC.
[PLATE LOCATION FOR REBUILDS]
[EXAMPLE : INCREASING INITIAL TORQUE]
| LOCATION | TYPE | NO. OF DISCS |
INCREASED INITIAL TORQUE NO. OF POATES |
STOCK INITIAL TORQUE i.e. ICREASED TORQUE(kg・m) |
| ① | SPACER | 2 | - | 16.5-18.5 | 18.0-20.0 |
| ② | SPRING DISC (TOOTHLESS) |
2 | - | |
| ③ | SPRING DISC (OUTER TEETH) |
- | 2 | |
| ④ | SPRING DISC (INNER TEETH) |
- | 2 | |
| ⑤ | FRICTION DISC (OUTER TEETH) |
12 | 12 | |
| ⑥ | FRICTION DISC (INNER TEETH) |
122 | 10 |
Click here to confirm model type compatiblity
If you are going to use the product on another vehicle,
you can use this as a reference to confirm compatibility.
* photo may vary from actual product *
