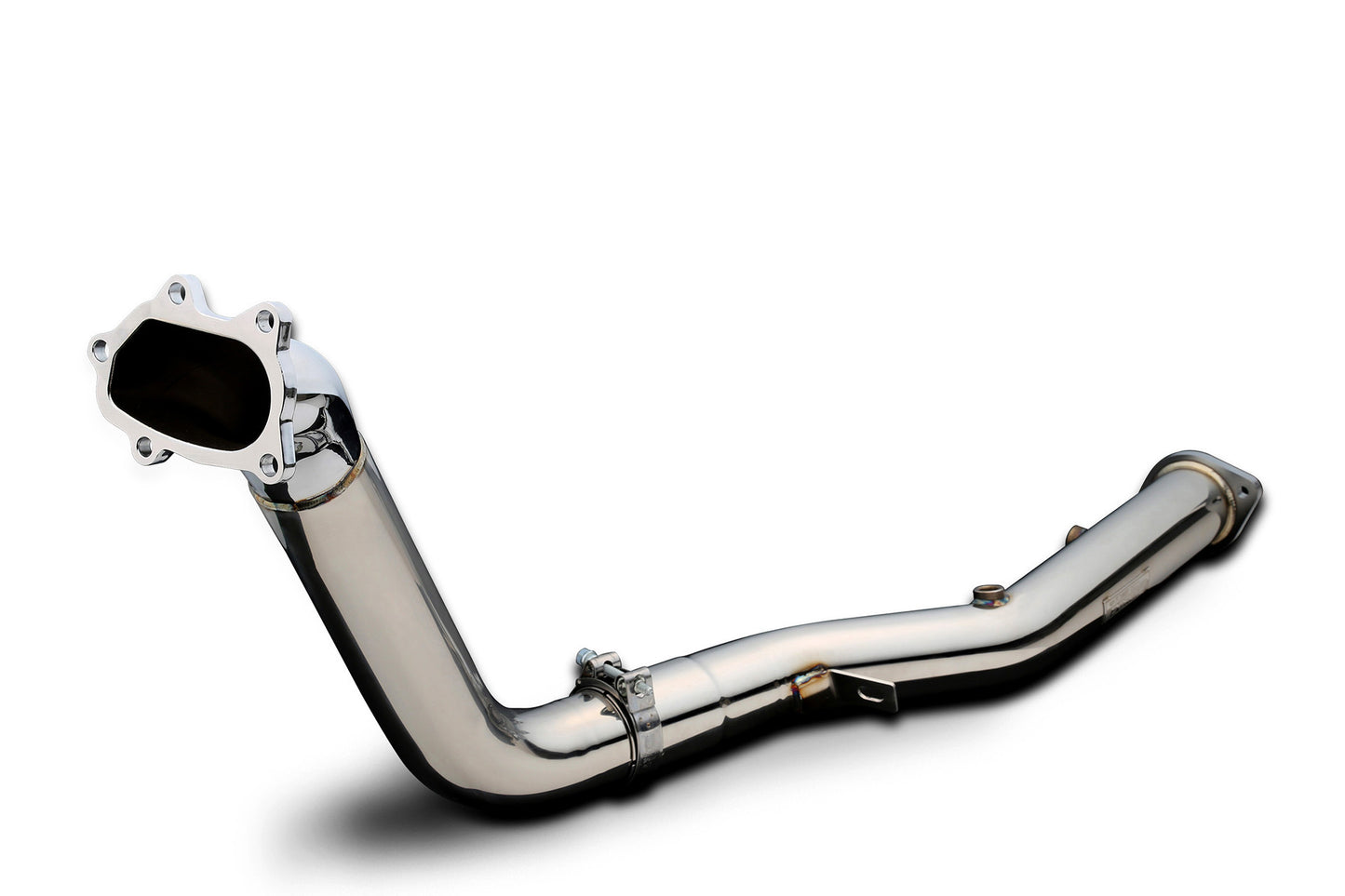

TOMEI STRAIGHT DOWN PIPE KIT EXPREME EJ SINGLE SCROLL GR/GV/GE/GH/VA Ver.2 with
TOMEI STRAIGHT DOWN PIPE KIT EXPREME EJ SINGLE SCROLL GR/GV/GE/GH/VA Ver.2 with
SKU:TB6060-SB02B
Couldn't load pickup availability
**SEND US AN EMAIL FOR PRICE MATCHING**
**PLEASE CONTACT US BEFORE ORDERING THE PARTS FOR AVAILABILITY**
Item Description
Maximum Weight Reduction,Optimum Performance,Catless Design
Tomei Catless Straight Down Pipe dramatically improve exhaust flow and significantly reduceover 53% of weight vs. stock down pipe. Addition to massive torque and power increase, lightness dramatically improve handling.

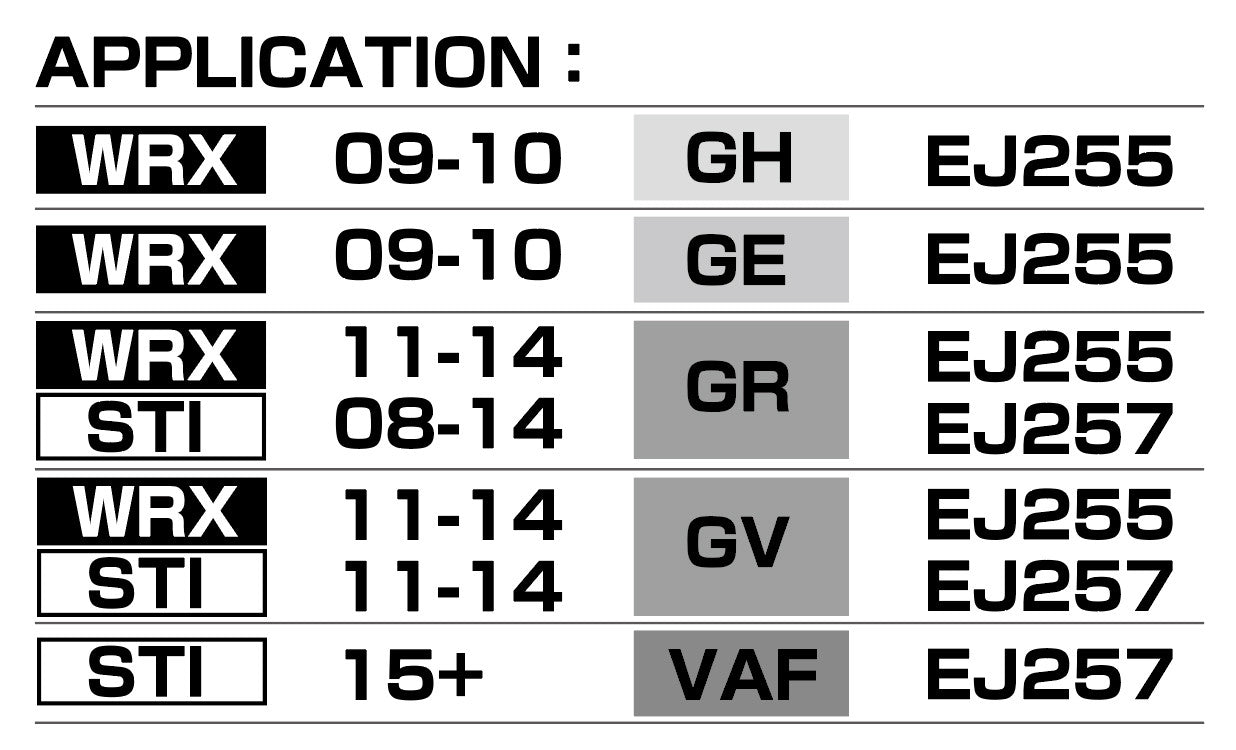

APPLICATION
| WRX | 09-10 | GH | EJ255 |
| WRX | 09-10 | GE | EJ255 |
| WRX | 11-14 | GR | EJ255 |
| STI | 08-14 | EJ257 | |
| WRX | 11-14 | GV | EJ255 |
| STI | 11-14 | EJ257 | |
| STI | 15+ | VAF | EJ257 |

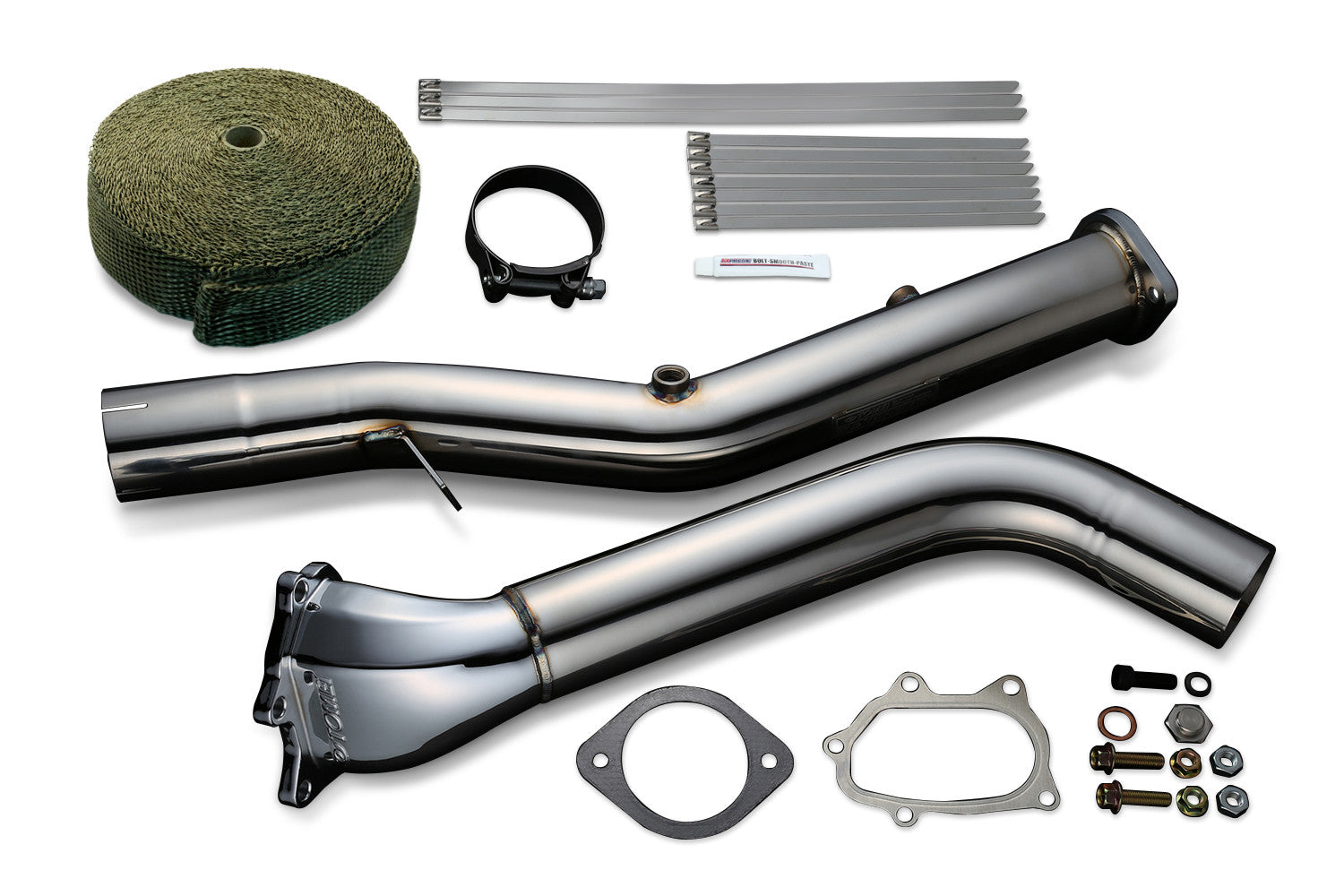

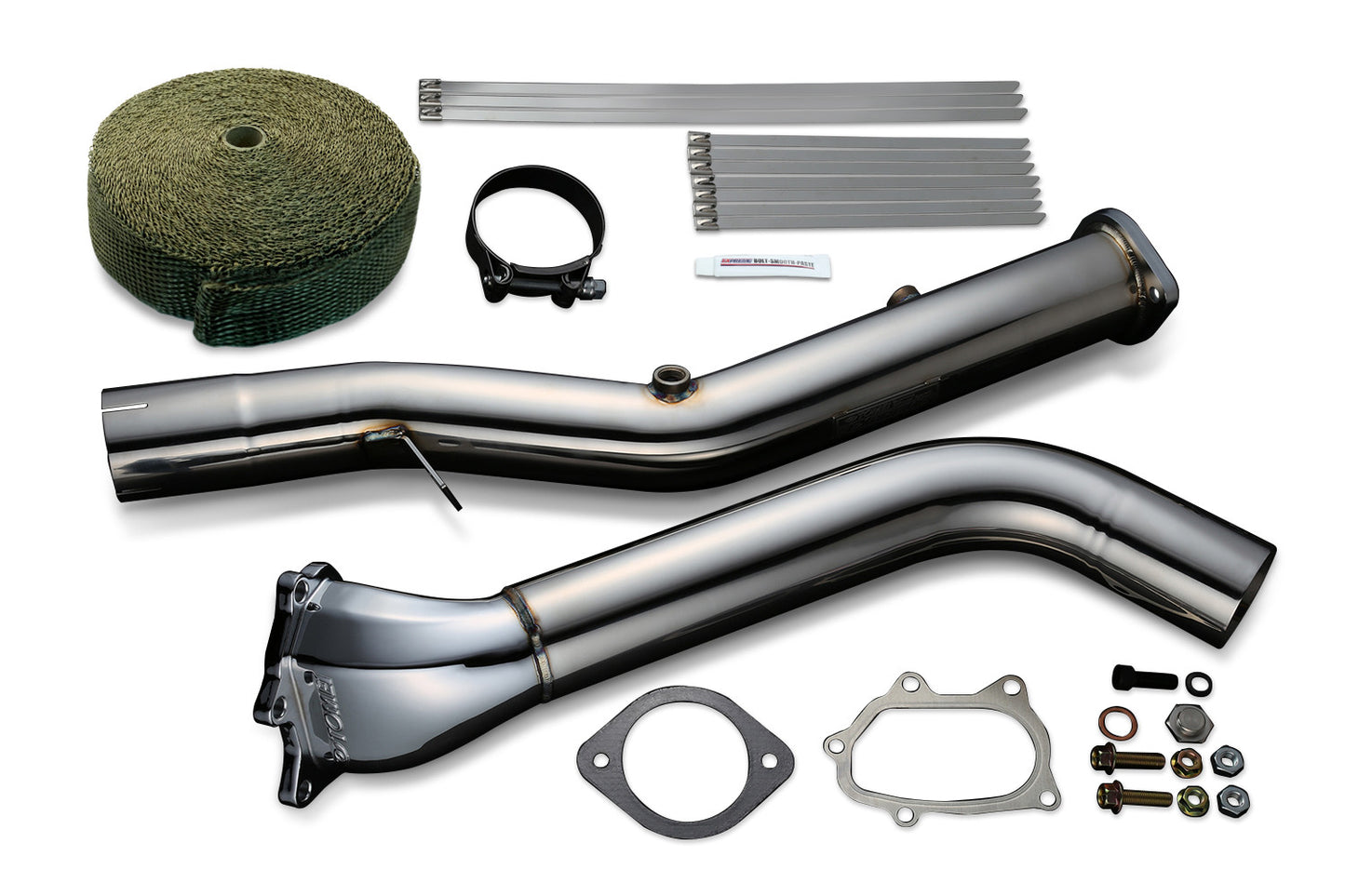

KIT CONTENTS
- DOWN PIPE A (1)
- DOWN PIPE B (1)
- TURBINE GASKET (1)
- MUFFLER GASKET (1)
- CLAMP BAND (1)
- CAP BOLT (1)
- FLANGE BOLT (2)
- FLANGE NUT (2)
- HEX NUT (1)
- BLIND PLUG (1)
- COPPER WASHER (1)
- DISC SPRING (1)
- TITAN EXHAUST BANDAGE (1)
- TITAN EXHAUST BANDAGE (1)
- BOLT SMOOTH PASTE (1)

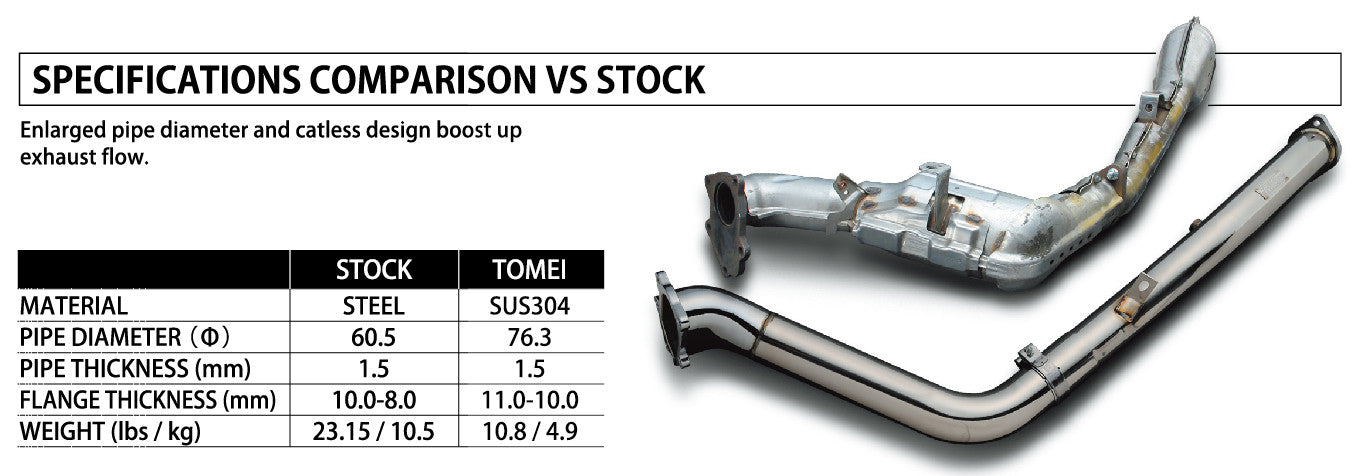

SPECIFICATIONS COMPARISON VS STOCK
Enlarged pipe diameter and catless design boost up exhaust flow.
| TOMEI | OEM | |
| MATERIAL | SUS304 | STEEL |
| PIPE DIAMETER （Φ） | 76.3 | 60.5 |
| PIPE THICKNESS (mm) | 1.5 | 1.5 |
| FLANGE THICKNESS (mm) |
11.0-10.0 | 10.0-8.0 |
| WEIGHT (kg / lbs) | 4.9 / 10.78 | 10.5 / 23.10 |

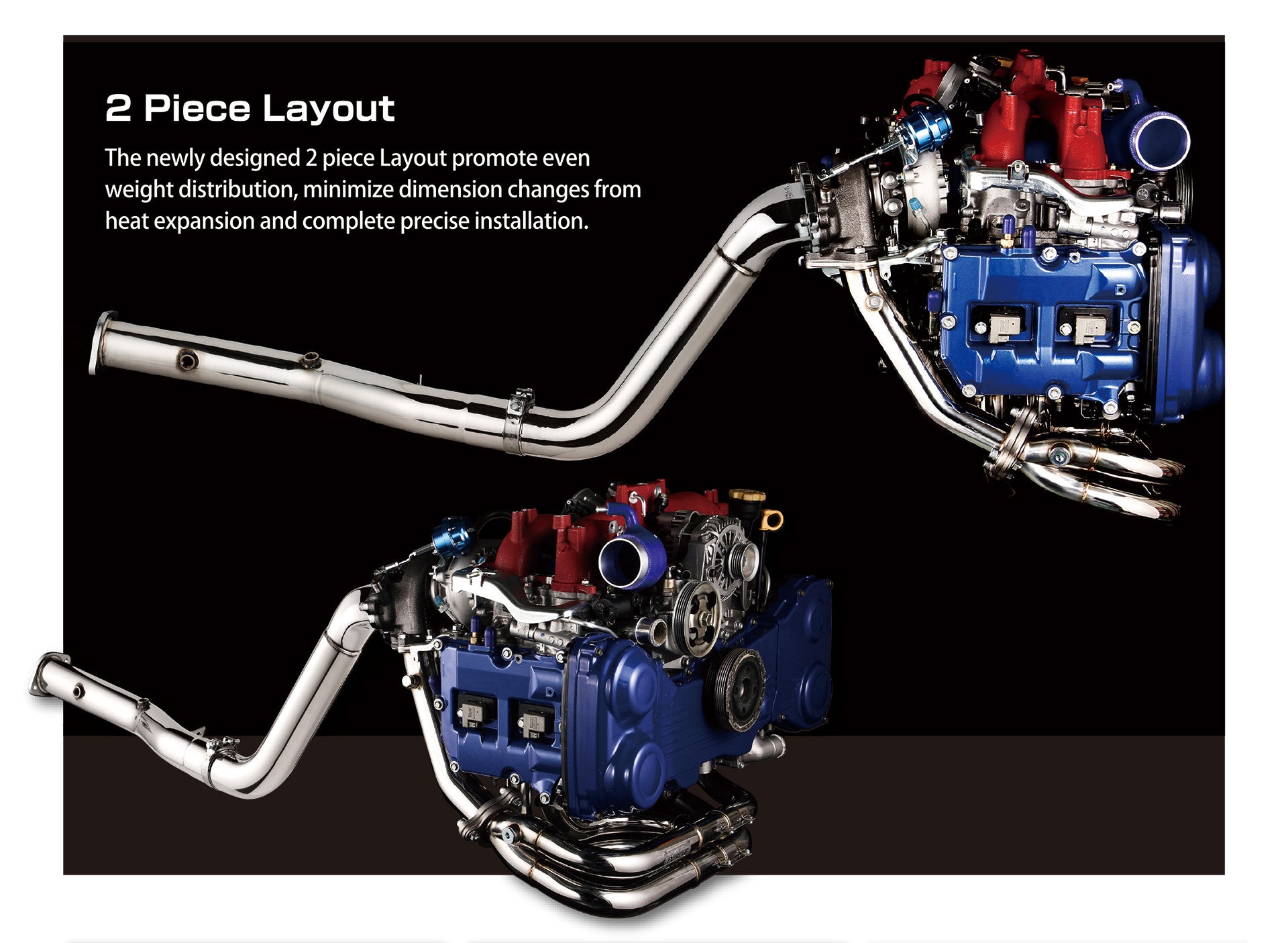

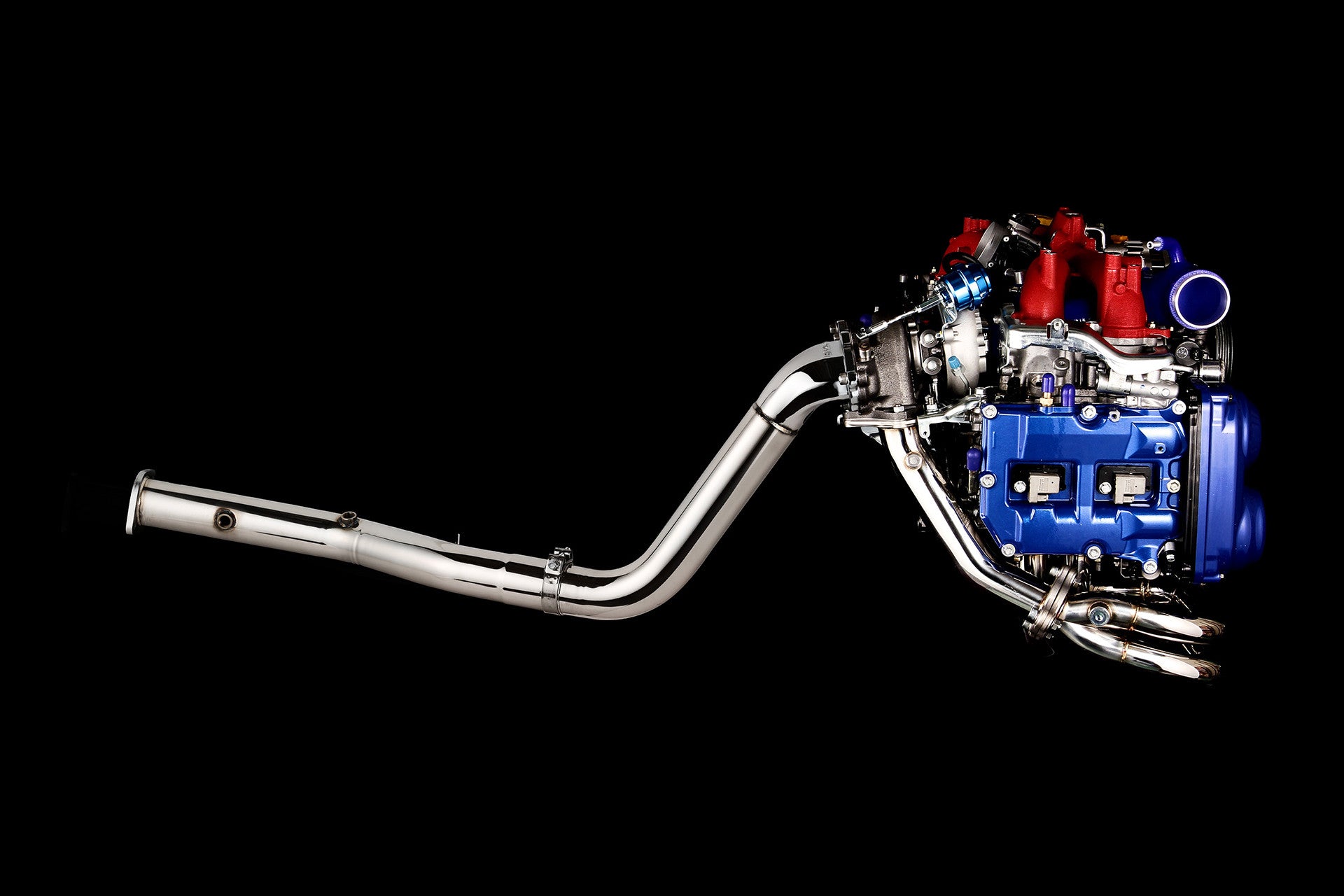

2 Piece Layout
The newly designed 2 piece Layout promote even weight distribution, minimize dimension changes from heat expansion and complete precise installation.

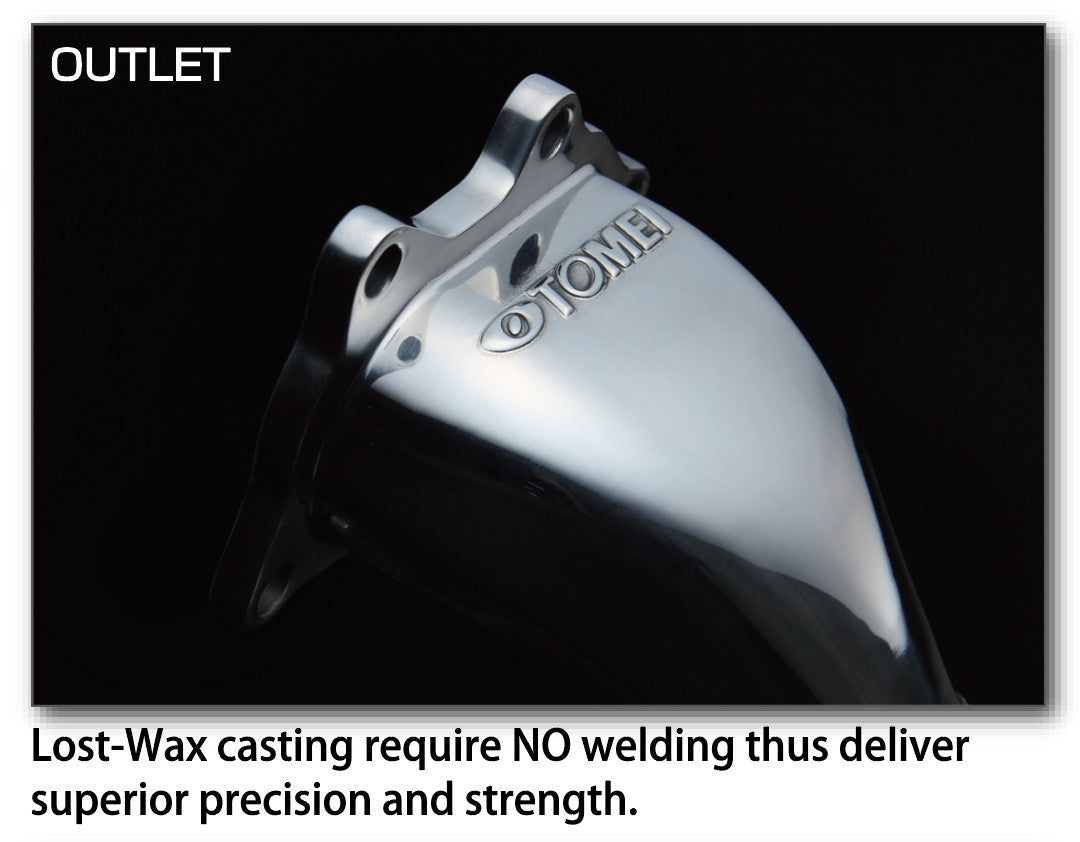

OUTLET
Lost-Wax casting require NO welding thus deliver superior precision and strength.

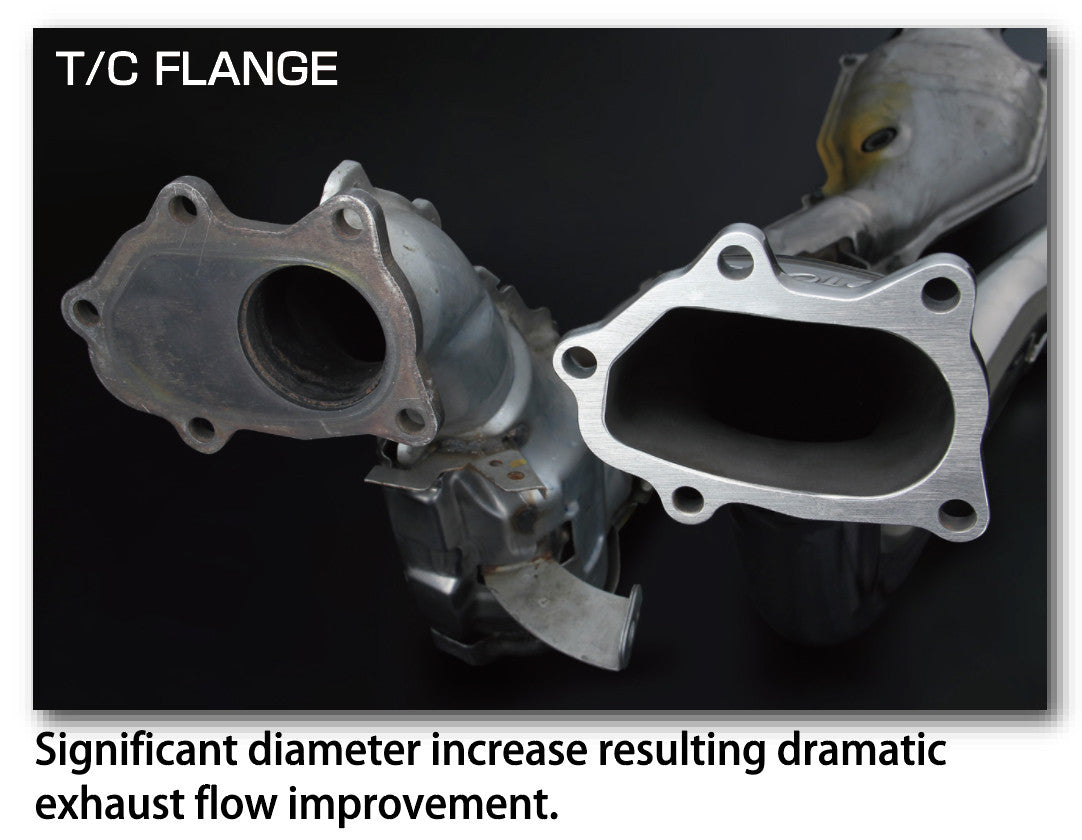

T/C FLANGE
Significant diameter increase resulting in dramatic exhaust flow improvement.

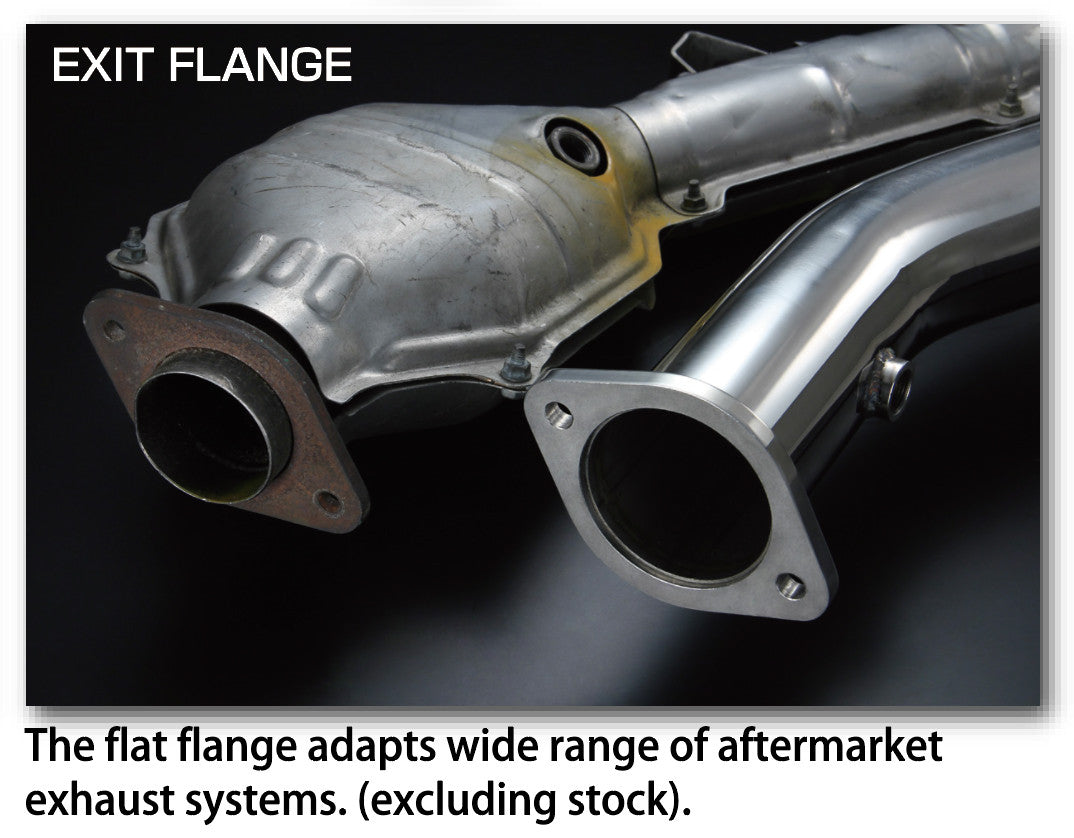

EXIT FLANGE
The flat flange adapts wide range of aftermarket exhaust systems. (excluding stock).

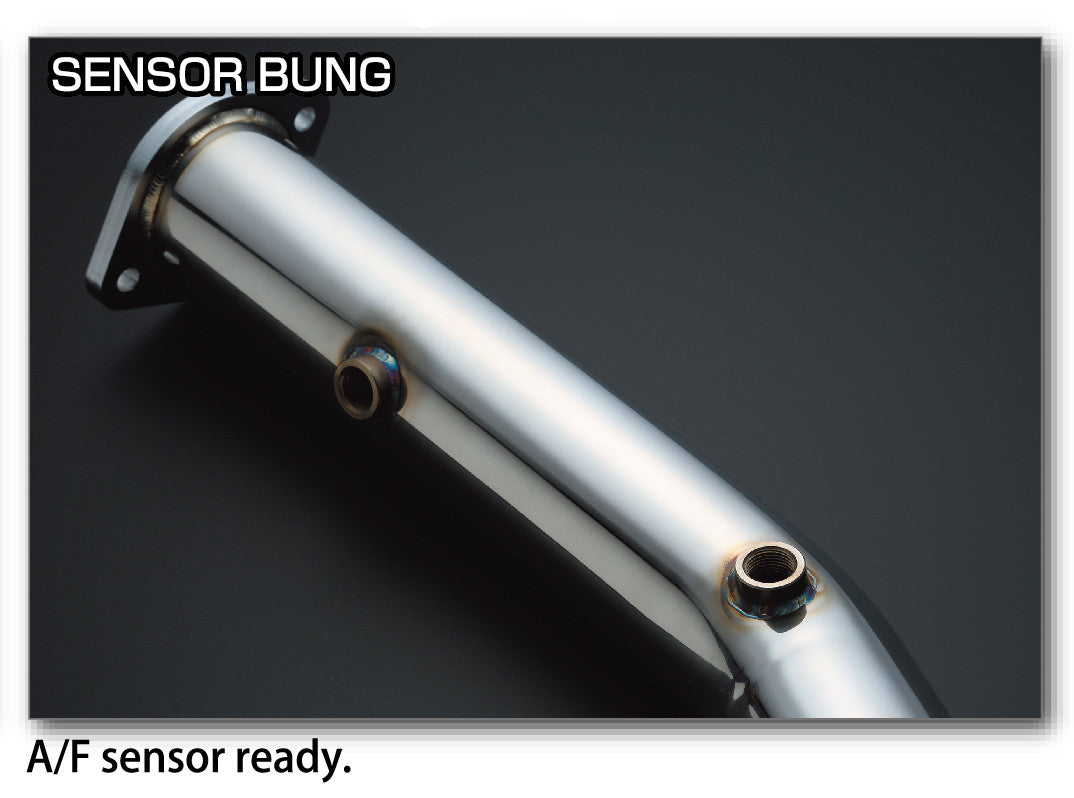

SENSOR BUNG
A/F sensor ready.
PERFORMANCE
|
TEST MODEL The Engine Dyno graph on the left shows the overall perforamnce increase throughout all RPM ranges to give the overall improved performance results. This was achived with extensive engine bench testing time from our R&D. This is the results based on the Z33 (350Z) exhaust manifold (headers) + straight front pipes which brings out the overall higher performance throughout the entire RPM range. |
 |
STRIVING for PERFECTION
The Engine Dyno graph on the left shows the overall perforamnce increase throughout all RPM ranges to give the overall improved performance results. This was achived with extensive engine bench testing time from our R&D.
This is the results based on the Z33 (350Z) exhaust manifold (headers) + straight front pipes which brings out the overall higher performance throughout the entire RPM range.
ROAD TEST
All data is logged and tested for accruate testing and attention to detail on the products efficiency for finding the best results.
LIGHTER
Case Example: Lancer Evolution where the exhaust is situated at the front of the car, every bit of weight reduction there helps a lot in improving the handling of the cars cornering characteristics. Every bit helps for you to gain that extra edge over your rivals.
QUALITY
LOST WAX PROCESSED
EXPREME is manufactured from various manufacturing methods combined especially for mass production high quantity. But the flange, bend sections & gathering section are finished off with lost wax processing for superior quality.
The benefits of "Lost Wax" Processing
* Stable High Quality
* High Intensity
* Durable
(Smooth inner walls & killer looks)
Lost wax processed on the gathering section and flange
SUS304 MATERIAL
The EXPREME products are made from stainless steel SUS304 material. It is light weight, has best resistance to corrosion, superior in heat resistance, better exhaust race harmonics, helps increase your cars value.
QUALITY CONTROL
All EXPREME products are screened with strict quality control. Even mass productions our QA levels are high to ensure the best possible product that will be worthy of the TOMEI brand name and guaranteed to meet & exceed all users expectations.
* Main Inspection Points
* Each Section Size
* Flange Quality
* No signs of burr or flash
* No signs of scratches or leaks
* Installation tested
* Weight is checked
* There are more inspection points but each product has different extra points addressed.
* photo may vary from actual product *
